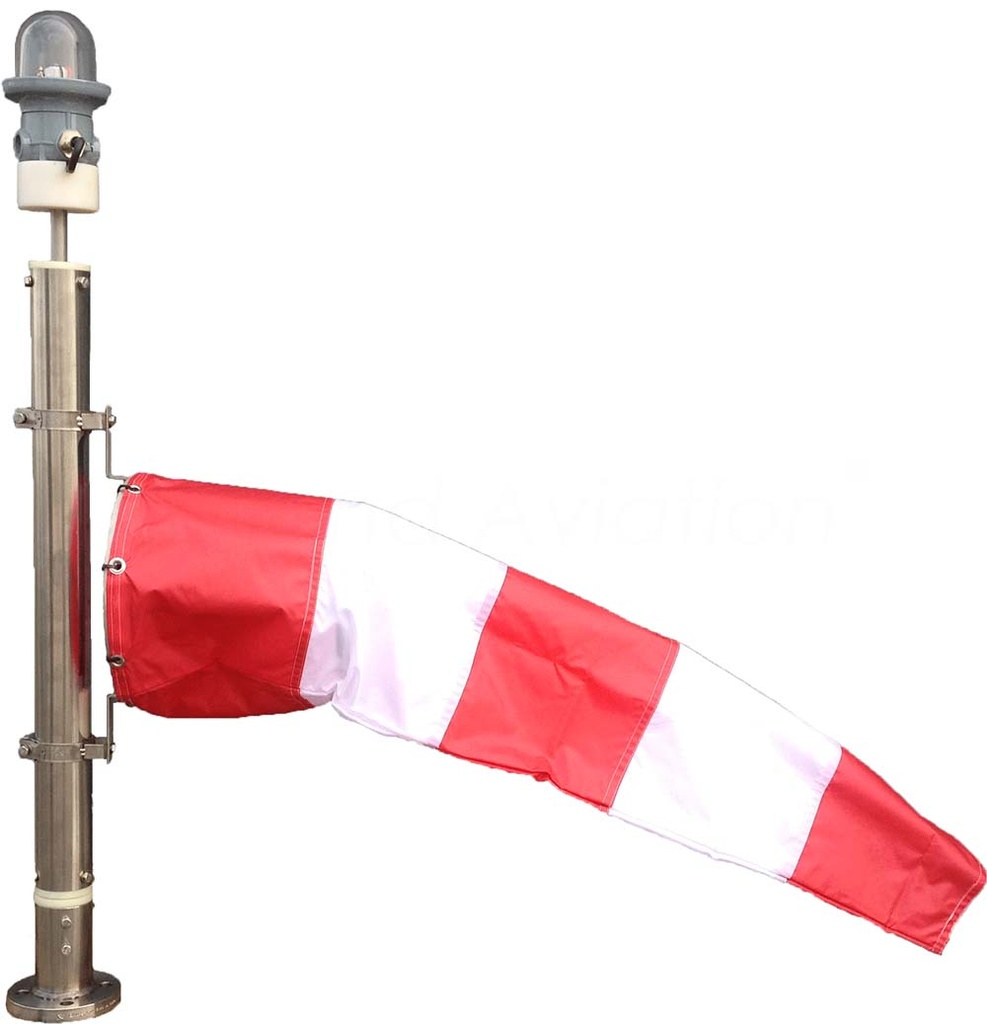

HA-80FL Ex Windsock assembly, Explosion proof Zone 1 (20cm Mast)

The HA-80 FL is a reliable wind direction and wind speed indicator for installation on any desired location. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or slip-rings. Due to its unique design maintenance cost and power consumption are low.

MAST DIAMETER 76,1 mm
MAST LENGHT Standard: 200mm (or any other lenght on request max 5800mm)
For dimensions of the different lighting styles, see other side.
MAST MATERIAL Stainless steel 316L
WINDSOCK Colour red/white (ICAO) or orange (FAA), double stitched with reinforced front hem and grommets. The HA windsock sleeves have been proven to withstand wind speeds in excess of 145 km/h (75 knots). The windsock fabrics have been tested for mechanical strength, UV resistance and colour fastness by an independent laboratory.
WINDSOCK SIZES
Ø300 x 1200mm Ø500 x 1500mm
Ø300 x 1500mm Ø500 x 1500mm with push button
Ø300 x 1800mm Ø600 x 2400mm
Ø400 x 2500mm Ø600 x 3000mm
Ø450 x 2450mm Ø18” x 8ft (FAA size 1)
Or any other custom made size

OPTIONS Ex Junction Box: CEAG eAZK 96 1 2xM20 or 4xM20, certified for: EEX e II T6 Zone 1 and Zone 2

COMPLIANCES ICAO Annex 14 Volume I and II, FAA AC150/5345-27, UK CAA CAP 168 and CAP 437, EASA ADR, EASA CS-HPT-DSN

EX INTERNAL LIGHTED Type obstruction light: EatonAB50 SPG1N
Red low intensity class B
Power supply: 90-240 VAC or 12-24VDC
Power consumption Obstruction Light: 5 Watt LED
Marking: Ex II 2 G Ex d IIC T6
EC-type certificate: LOM 02ATEX2018X
Certificate: BVS 15 ATEX ZQS/E345
Ingress Protection: IP66
Ambient Temperature: -50⁰C to +55⁰C

Type internal lighting: Thuba GB 34 20 0385
Power supply: 85-265 VAC or 12-370 VDC
Power consumption Internal Light: 20 Watt LED
Marking: Ex db IIC T6 Gb
Certificate: IECEx BVS 18.0055
BSV 17 ATEX E 078 X
Ingress Protection: IP 68
Ambient Temperature: -20⁰C to +50⁰C
