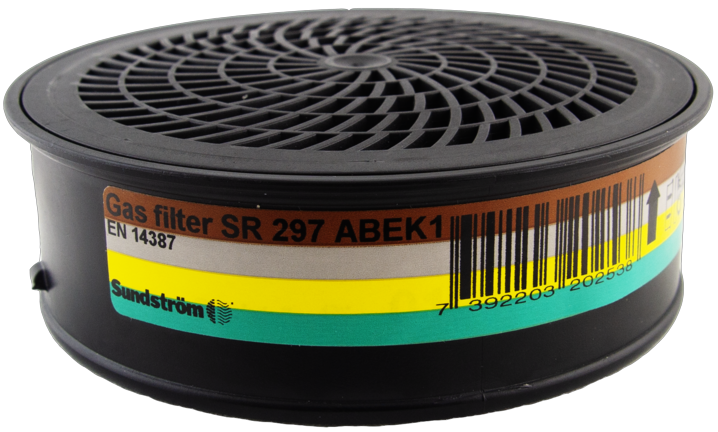

SR 297 Gas Filter ABEK1
Filter for protection against gases and fumes with optimized adsorption.
Description
Gas filter SR 297, Class 1, is designed for use together with Sundström half masks and full face masks. The filter is of type ABEK and provides protection against the following types of gases and vapours: Type A protects against organic gases and vapours, such as solvents, with boiling points > +65 °C. Type B protects against inorganic gases and vapours, such as chlorine, hydrogen sulphide and hydrogen cyanide. Type E protects against acidic gases and vapours, such as sulphur dioxide and hydrogen fluoride. Type K protects against ammonia and certain amines, such as ethylene diamine. The gas filter can easily be combined with particle filter SR 510 P3 R in order to obtain protection also against aerosols (particles), e.g. during spray painting.
Technical Specifications
More Information
Art.nr.	H02-5312
Material	ABS, Impregnated activated carbon, Polyester
Color	Black
Shelf life (years)	5
Country of manufacture	Sweden
Height (mm)	36
Diameter (mm)	106
Operating temp.	-10 – +55 °C, < 90 % RH
Storage temp.	-20 – +40 °C, < 90 % RH
Approval	EN 14387:2004 + A1:2008
Directive 1	(EU) 2016/425 PPE
Model description	SR 297 Gas filter ABEK1
Downloadable files
Instruction for use
L27-1310 Filter Rev 06.pdf (582.93 KB)
https://www.srsafety.com/amfile/file/download/file_id/90919/product_id/5973/
Product leaflet
P02H-5318 SR 297 ABEK1 Rev 09.pdf (999.26 KB)
https://www.srsafety.com/amfile/file/download/file_id/90976/product_id/5973/
