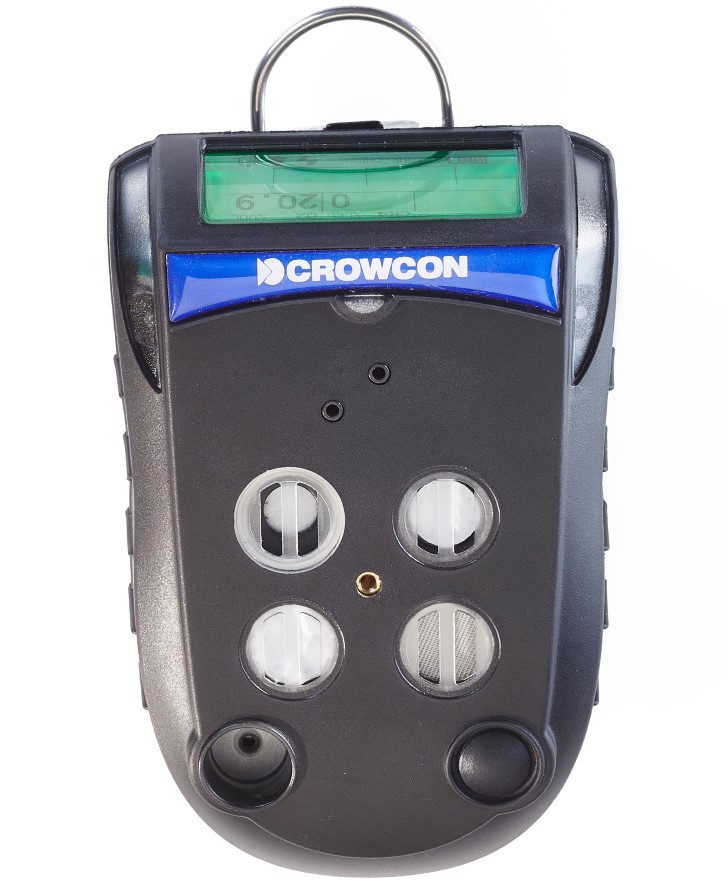

GasPro TK Gas Detector (Pumped)
Our Gas-Pro TK is a specialised tank monitor that is perfect for customers who want to purge, free, or maintain storage and transportation tanks due to its integrated auto switching dual range IR sensor technology.
Overview
Gas-Pro TK dual range portable monitor measures the concentration of flammable gas in inerted tanks. Available for methane, butane and propane, Gas-Pro TK uses a dual IR sensor – the best technology for this specialist environment, which means Gas-Pro TK dual IR:
Auto-ranges switch between %vol and %LEL measurement, so always operating to the correct parameter.
Measures gas in high %vol as well as %LEL concentration, which single IR sensors can’t
Isn’t inhibited by high hydrocarbon concentrations unlike catalytic bead sensor
Gas-Pro TK keeps you up-to-the moment with oxygen concentrations in the tank; telling you when the oxygen levels are;
Low enough to load and store fuel safely;
High enough for safe tank entry.
Tanks can be sampled quickly from their top, middle or base, due to an integrated pump which draws samples through a line up to 30m long.
Offering detection of up to five gases in a compact and rugged solution, Gas-Pro TK has an easy-to-read top mount display, combining ease of use and user focused features. At 340g, it is light enough to clip to your belt or overalls, so it easy for the technician to keep with them during their working day.
Personal protection monitor
Gas-Pro TK is an extension of the Gas-Pro range. Therefore, in addition to its superb tank check capabilities, it also offers the full personal gas detection and confined space pre-entry check functionalities provided by other Gas-Pro detectors.
Specifications
Specifications
Size 43 x 130 x 84mm (1.7 x 5.1 x 3.3ins)
Weight 340g (11.9oz)
Alarms Audible 95dB
Visual – all angle dual red/blue LEDs
Vibrating alert
Display Bright top mounted display can be viewed while worn
Data logging 125hr at 10-second intervals (45,000 logs)
Event logging 1000 events
Battery Rechargeable Li-ion, 13 hour typical runtime (4 sensors, pump running)
Typical charge time 7.5hr
Sampling Internal pump with 30m draw
Operating temperature -20°C to +55°C (-4°F to +131°F)
Humidity 10 to 95% RH non-condensing
Ingress protection Independently tested to IP65 and IP67
Approvals IECEx: Ex db ia IIC T4 Gb Tamb -20°C to +55°C
ATEX: II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C
UL: Class 1, Division 1, Groups A, B, C, and D UL 913, UL 60079-0 and UL 60079-11
INMETRO: Ex db ia IIC T4 Gb Tamb -20°C to +55°C
Marine Equipment Directive: MED 1500009
Compliance FCC and CE. Complies with EMC Directive 2014/30/EU, EN50270 and EMC FFC CFR 47 Part 15, ICES-003
Crowcon Connect Compatible? Yes
Gases and Ranges
Gas Range Typical Alarms Resolution
Carbon dioxide (CO2) 0-5% vol. 0-5% vol. 0.01% vol.
Carbon monoxide (CO) 0-2000ppm 30ppm 1ppm
Carbon monoxide (CO) 0-500ppm 30ppm 1ppm
Carbon monoxide (hydrogen filtered) 0-2000ppm 30ppm 1ppm
Dual toxic (CO-H2S)
H2S 0-100ppm 30ppm 1ppm
CO 0-500ppm 5ppm 1ppm
Hydrogen sulphide (H2S) 0-100ppm 5ppm 1ppm
Hydrogen sulphide (H2S) 0-1000ppm 5ppm 1ppm
Methane IR dual range 0-100% LEL, 0-100% Vol
Butane IR dual range 0-100% LEL, 0-100% Vol
Propane IR dual range 0-100% LEL, 0-100% Vol
CROWCON
Detecting Gas. Saving Lives Crowcon Detection Instruments Ltd focus on gas detection by understanding current and future market requirements and responding accordingly. Our track record of growth speaks for itself. Our vision is to protect people and the environment from gas hazards by providing both single and multi gas monitors, enabling personal and larger-scale monitoring.
Share this product:
| GasPro Config 6) Charging/USB Communication Cables | A Multi-region power supply or C Gas-Pro Charger cradle with supply or Z None |
| GasPro Config 7) Sensors Bay 1 | ZZ None or AL Hydrogen sulphide 0-100ppm or AT Hydrogen sulphide 0-1000ppm or AC Carbon monoxide 0-500ppm or AD Carbon monoxide 0-2000ppm or AE Carbon monoxide 0-2000ppm (H2 filter) |
| GasPro Config 7) Sensors Bay 2 | ZZ None or DA-DB Dual Toxic CO 0-500ppm/H2S 0-100ppm or AL Hydrogen sulphide 0-100ppm or AT Hydrogen sulphide 0-1000ppm or AC Carbon monoxide 0-500ppm or AD Carbon monoxide 0-2000ppm or AE Carbon monoxide 0-2000ppm (H2 filter) |
| GasPro Config 7) Sensors Bay 3 | ZZ None or RG Methane IR dual range 0-100% LEL, 0-100% Vol or RB Butane IR dual range 0-100% LEL, 0-100% Vol or RJ Propane IR dual range 0-100% LEL, 0-100% Vol |
| GasPro Config 7) Sensors Bay 4 | OC O2 0-25% vol. (3 year) or ZZ None |
