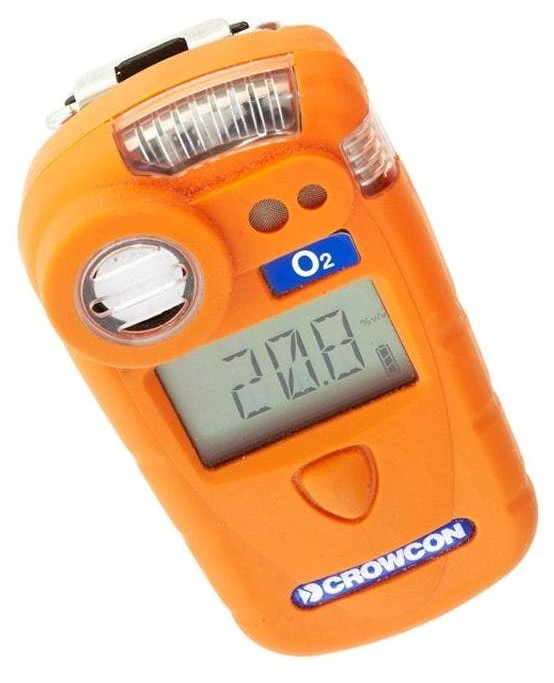

GS GASMAN (O2) Oxygen Detector

Our Gasman is a full function device in a compact and lightweight package – perfect for customers who need more sensor options, TWA and data capability

It comes available with long-life O2 sensor, MPS sensor technology.

Description:
The Gasman is a rugged, compact single gas detector, designed for use in the toughest environments. Its compact and lightweight design makes it the ideal choice for industrial gas detection, in oil and gas, chemical plants (with exotic gases), steel works (special CO sensor), hospitality (CO2), renewable energy (hydrogen) and waste and water works. Weighing just 130g, it is extremely durable, with high impact resistance and dust/water ingress protection, loud 95 dB alarms, a vivid red/ blue visual warning, single-button control and an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Data and event logging are available as standard, and there is a built-in 30 day advance warning when calibration is due.

Meet the next generation of oxygen gas detection
Gasman is now available with lead free, long-life oxygen sensors
Industry’s first 5-year warranty
Lead-free for RoHS compliance
Reduced sensor replacement
Lower cost of ownership
Reduced environmental impact

Robust
Tough Polycarbonate Housing – protects you in the harshest environments
Water And Dust Resistant To IP65
Full Overmoulding – high impact resistance

Effective warning
Two Levels Of Instantaneous Alarm And TWA Alarms for toxic versions – ensures prompt evacuation from hazardous zone
95dB Audible Alarm
Vivid Twin Red/Blue Visual Alarm – if ambient noise is high, Gasman alerts you by vibrating and with the high impact blue/red LED alarms
Internal Vibrating Alarm

Flexible
Versions Available For Flammable Gas, Oxygen And Toxic Gases – gas detector tailored to your requirements
Rechargeable Versions for all gas types
Non-Rechargeable Versions so ideal for oxygen and toxic gases
Real-Time TWA And Peak Display Options
Fully Interchangeable Intelligent Sensor Modules

User friendly
One Button Operation – quick and easy to use
Backlit Display For Gas Diagnostics And Operating Status – easy to read
Ultra Lightweight; Just 85g For Toxic Versions – comfortable to wear


Specifications:
Size	90 x 48 x 24 mm (3.5 x 1.9 x 0.95 ins)
Weight	Flammable: 138g (4.9oz)
Toxic: 85g (3oz)
Oxygen: 129g (4.6oz)
Carbon monoxide: 139g (4.9oz)
Typical response times (T90)	Flammable: 20s
Flammable (MPS): 17s
Toxic gas: 20s
Oxygen: 10s
Oxygen (Long-Life): 10s
Alarms	Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels
Visible: Dual colours red/ blue flashing LEDs in a gas hazard
Internal vibrating alarm
Display	Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue or service required.
Normal display: Real time gas concentration levels
Display recall: Peak readings and TWA
Data logging	Full timed datalogging with adjustable sample rate, set to 1 min. data rate as default.
900 hours storage at 1 min. interval (54,000 logs), >4800 events
Battery	Rechargeable lithium battery for all gas types
Non-rechargeable lithium battery for toxics and oxygen (excluding CO2)
Operating time*	Rechargeable with MPS: >3days
Rechargeable: 12 hours minimum for flammable unit
Non-rechargeable: Up to 2 years
Sampling	 Optional manual aspirator
Operating temperature**	-20°C to +65°C (-4°F to +149°F)
Humidity	5 – 95% RH
0 to 99% RH (O2 LL MPS)
Ingress protection	IP65
Approvals	Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0384
Flammable: ATEX II 2G Ex ia db IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0383Flammable (MPS): ATEX II 1G Ex ia IIC T4 Ga (-20°C ≥Ta ≥ +65°C) BASEEFA04ATEX0383
International: Toxic or O2: IECEx Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BAS05.0039
Flammable: IECEx Ex db ia IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BAS05.0038
North America: CSA Class 1 Groups A,B,C,D Division 1
Standards	Europe: EN60079-0, EN60079-11, EN60079-1, ATEX 2014/34/EU
North America: CSA22.2, 152EN50270, EN50271, EN61779, EN45544
PC Interface	RS232 connection from interface module in charger
RS232/USB converter available
Calibration	Gasman can be routinely calibrated using Portables PC software or by using Checkbox IMH
Accessories	Gasman is supplied with an integral alligator clip.
Optional accessories:

Gas test kit, Gasman external filter, leather carry case, single way charger, charger interface software and communication kit (excluding PSU), 5 way multi-charger

Crowcon Connect Compatible?	Yes

Gases and Ranges
Required ranges and alarms vary by country and application and these can be configured as required. Each gas channel can have two instantaneous alarm levels set. Toxic units also have Time Weighted Average (TWA) alarms.

Flammable gas calibration is available for methane, propane, butane, pentane, hydrogen and
ethylene as standard.

Gas	Range	Standard Alarm (UK)
Ammonia (NH3)	 0-1000 ppm	 25 ppm
Carbon Monoxide (CO)	 0-1500 ppm	 30 ppm
Carbon Dioxide (CO2)	 0-5% vol.	 0.5% vol.
Carbon Monoxide (H2
filtered)	 0-500ppm	 30ppm
Chlorine (Cl2)	 0-20 ppm	 0.3 ppm
Chlorine Dioxide (CIO2)	 0-1 ppm	 0.1 ppm
Ethylene Oxide (ETO)	 0-10 ppm	 3 ppm
Flammable True LEL (MPS)	 0-100% LEL	 20% LEL
Flammable	 0 – 100% LEL	 20% LEL
Fluorine (F2)	0-1 ppm	 0.5 ppm
Hydrogen (H2)	 0-2000 ppm	 N/A
Hydrogen Cyanide (HCN)	 0-25 ppm	 5 ppm
Hydrogen Fluoride (HF)	0-10 ppm	 1 ppm
Hydrogen Sulphide (H2S)	0-250ppm	 5 ppm
Nitric Oxide (NO)	0-100 ppm	 25 ppm
Nitrogen Dioxide (NO2)	 0-20 ppm	 1 ppm
Oxygen (O2), Long-Life	 0-25% vol.	 19.5% / 23.5% vol.
Oxygen (O2)	 0-25% vol.	 19.5% / 23.5% vol.
Ozone (O3)	 0-1 ppm	 0.1 ppm
Phosphine (PH3)	 0-5 ppm	 0.1 ppm
Phosgene (COCL2)	 0-1 ppm	 0.1 ppm
Sulphur Dioxide (SO2)	 0-20 ppm	 1 ppm
