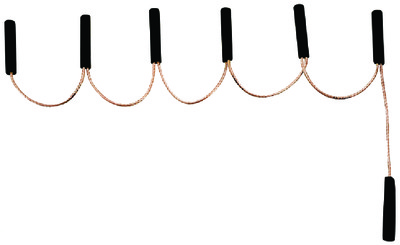

GDDTORS Short-circuiting equipment

STANDARD(S) : IEC 61230

SPECIFICATIONS :
Max. Isc : 4 kA/1 second.
• The device consists of female bayonet sockets for connection to male pins, Ø 11.1 mm (ref. NFC33020 - HT33S69).
• The sockets are linked to each other by insulated copper connections with a cross-section of 16 mm² and length 0.40 m
• The sockets are insulated with a synthetic insulating material.
• The devices are available in 3 models with 5, 6 or 7 sockets.

TABLE LEGEND : All the GDDTORS models are delivered in a plastic case without earthing rod.

GDDTORS 5 = Short-circuiting equipment with 5 sockets
GDDTORS 6 = Short-circuiting equipment with 6 sockets
GDDTORS 7 = Short-circuiting equipment with 7 sockets
CTS38 = Plastic case (included with GDDTORS models)
