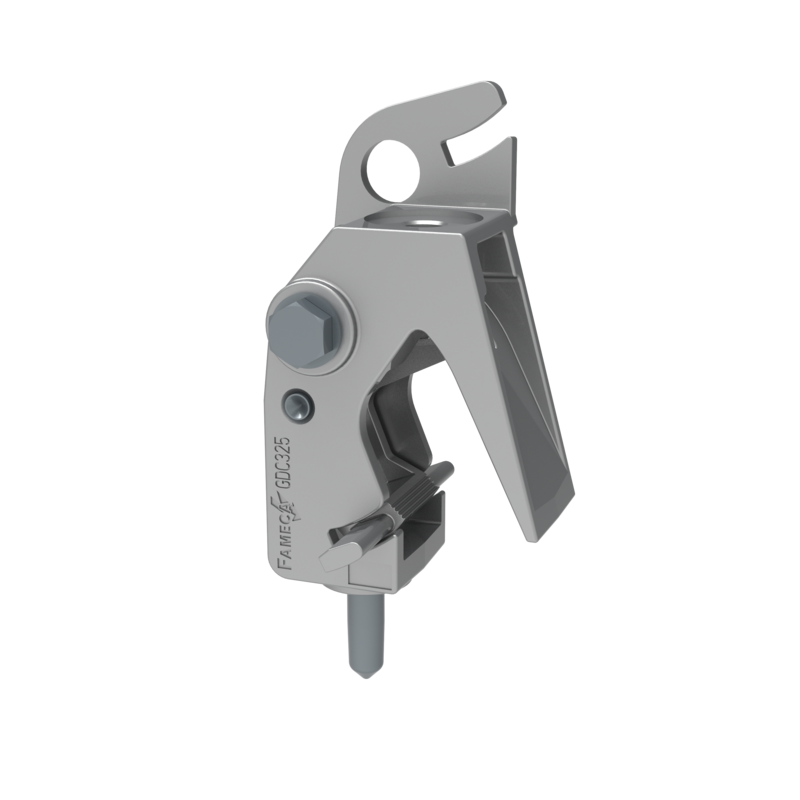

GDC325 Earthing clamp

Standards - CEI 61230
Use
The MT330N is a spring-loaded, pre-armed clamp that enables automatic clamping on the conductor.
It consists of an aluminum alloy body and jaw.
M10 stainless steel screws included.

Advantages
- Automatic spring clamp, no manual tightening required
- High clamping capacity
- Fast and easy to use

Technical specifications
- Product kind : Clamps
- Clamp material : Aluminium
- Clamp tightenning (mm) : Ø3 à 32
- Conductor type : Round
- Operating voltage (V) : HTA (1 000 V to 50 000 V)
- Field of use (environment) : Aerial or transformation station
- Short-circuit intensity kA/1s : 18
- Measurement : 190x85x90mm
- Weight (kg) : 0,56
