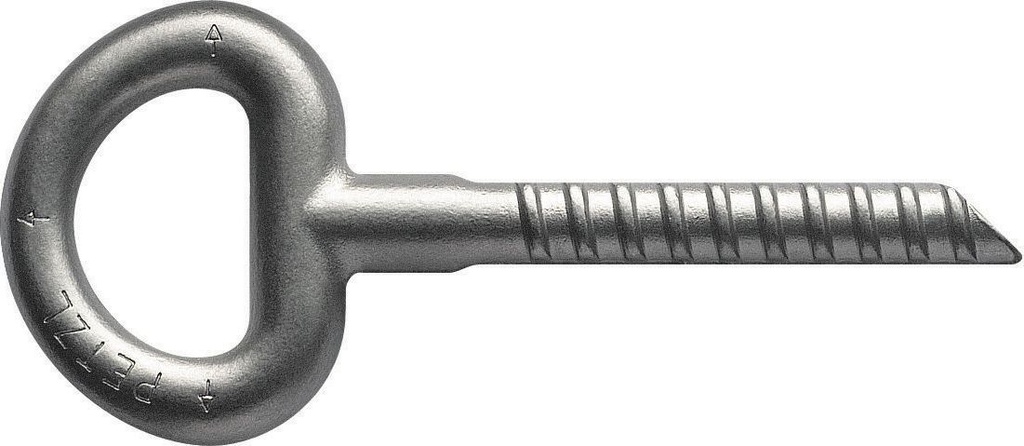

G102AA00 BAT’INOX 14 mm resin anchor (pack of 10)

Forged stainless steel glue-in bolt.

Description
14 x 100 mm

Specifications
Material(s): forged stainless steel
Certification(s): EN 959
References
References	G102AA00
Diameter	14 mm
Weight	250 g
Granite, gneiss higher than 80 MPa: preliminary testing recommended
Hard limestone higher than 80 MPa: preliminary testing recommended Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing recommended
Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended
Medium quality concrete from 25 to 50 MPa: preliminary testing recommended
Length	10 cm
Drilling depth	10-10,5 cm
Drilling diameter	16 mm
Type of installation	G103AA00 glue (or other glues approved by Petzl)
Suggested drying time	40 min - 10 h
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	15 kN
Times are given for G103AA00 glue (times may vary depending on the glue used and on the external environment)
