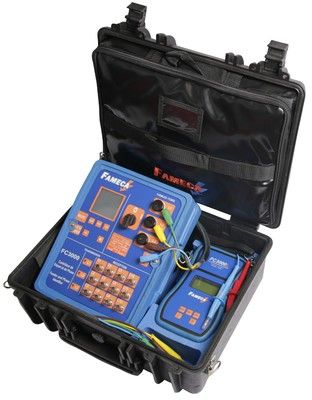

FC3000X Live LV feeder and cable identifier - 6 to 12 feeders

USE : Simple to use, this device enables a technician working alone to quickly identify and check the substation, the feeders (from 6 to12 feeders) and the phase supplying each customer connection, inseconds !

Applications :
• Checks the network layout in seconds while maintaining energydistribution – updates cable mapping
• Helps to balance the loads on the phases of the low voltage network
• Also enables you to find a subscriber’s LV power distributionsubstation different tone according to voltage level (discontinuoustone up to 230V and continuous tone above 400V).

SPECIFICATIONS :
Central Unit (CU) :
• Nominal Voltage :
- On star networks with neutral : 115-230 V AC phase-neutral(200-400 V AC phase to phase)
- On networks, star or delta, without neutral : 115-230 V ACphase to phase
• Rated voltage : 440 V AC
• Frequency : 50 Hz or 60 Hz
• Input protection (fuses on board and leads)• Connectors for sensors : 12
• Sensors : 6, 9 or 12 on request• Number of CU ID code (Number of units aware on the samearea) : up to 8
• IP protection : IP54
• Operating temperature : from -10°C to +55°
• Overall dimensions : 330 x 260 x 100 mm, or 13” x 10” x 4”
• Weight : 4,5 kg / 10 lbs• Mechanical protection : Rubber shell

Line Unit (LU) :
• Supply : 4 x 1.5 V AA batteries
• Nominal voltage : 115-230 V AC phase-neutral

Measure and display of voltage :
• Rated voltage : 440 V AC
• Frequency : 50 Hz or 60 Hz
• Input protection (fuses on board and leads)
• IP protection : IP54
• Operating temperature : from -10°C to +55°C
• Over all dimension : 240 x 130 x 66 mm, or 9.5” x 5” x 2.6”
• Weight : 1,3 kg / 2.9 lbs
• Mechanical protection : Rubber shell

Packaging, waterproof heavy duty carrying case :
- Overall dimensions : 474 x 415 x 214 mm, or 18.6” x 16.3” x 8.5”
- Weight : 9,5 kg / 21 lbs

ADVANTAGES :
All probes and connection are HPC fused.
Extractible compact Central Unit to beenclosed in “Pillar boxes” or pad mountedtransformer station.
Smart Meter friendly : compatible withCPL communication of Smart grid.
Give one operator all parameter of anycustomer connection (Phase, circuit,source).

TABLE LEGEND : 3 coils upgrade from 6 feedeers to 9 feeders = ref : J3BFC3KR6A9 3 coils upgrade from 9 feedeers to 12 feeders = ref : J3BFC3KR6A9 For leads in other colours, ask your distributor.
