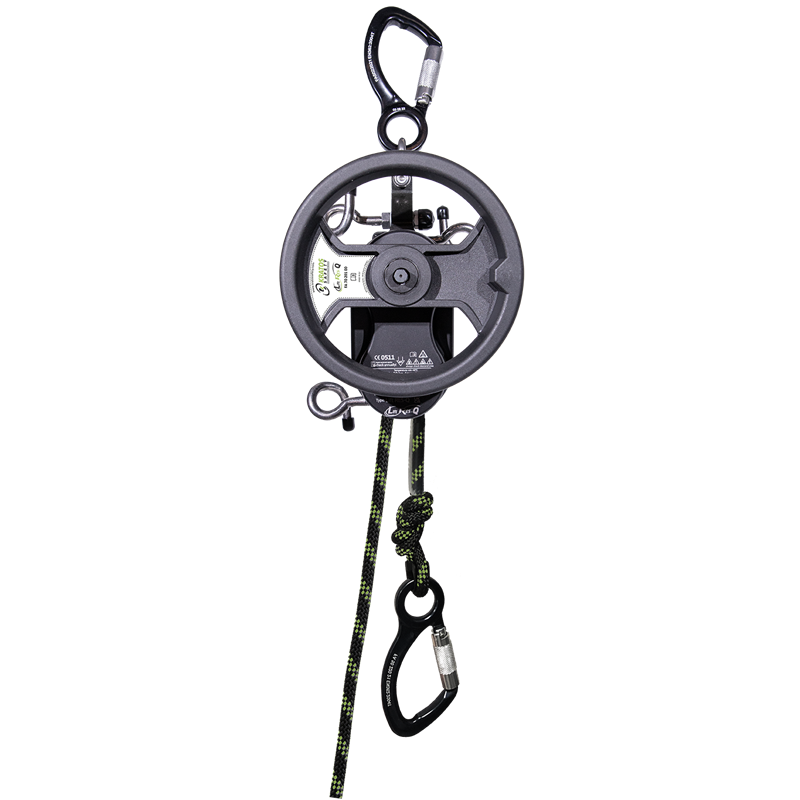

FA70201 System Lift Res-Q for rescue, self-evacuation, descent, retrieval

LIFT RES-Q, evacuation and rescue device, 20 m, 40m
Lift Res-Q is the perfect device for lifting and rescue operations.
Made of aluminium alloy and high-strength steel and dia. 9.6 mm semi static kernmantle rope assembled with the device.
Rope ends with double figure of 8 knots for connection with karabiner. Provided with 2 hooks ref. FA 50 220 21.

Controlled descent speed: 1 m to 1.50 m/sec (depending on the weight), up to 225 kg.
Maximum descent height: 500 m.
Maximum lifting height: 500 m.
Usable with electric screwdriver for high ascents.
Brake system: Automatic and redundant.
Maximum no. of users: 2 users - 225 kg.
Inspection: Once a year or every 6000 m of rope.

Available in 2 lengths: 20 m (FA7020120), 40 m (FA7020140).
For specific lengths, you need to associate the following references:
- FA7020100: device only.
- FA7010999: Kernmantle rope per meter.
- FA7010998: Required length of rope with double “figure of 8” knots and automatic locking hook.

Compliance:
N 341:2011-1A
EN 1496:2007 B
EN 12841:2006 Type C.
