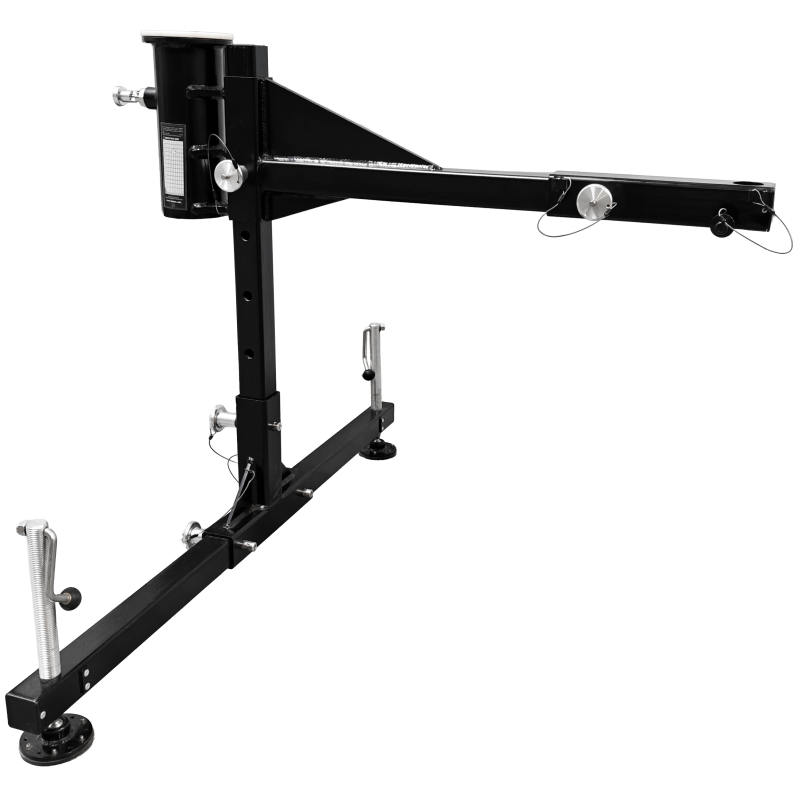

FA6010700 EASYSAFEWAY 3, Hitch anchor for EASYSAFEWAY 1 and MULTISAFEWAY davit arms

EASYSAFEWAY 3 - Tow ball anchorage for EASYSAFEWAY 1 davits

The EASYSAFEWAY 3 tow ball anchorage is a temporary, transportable anchorage system designed to be attached to a vehicle’s tow ball. This tow ball must have a diameter of 50mm (European standard). The carrier vehicle must weigh at least 1,000kg.

This temporary, transportable anchorage device is designed to be used for access, work in suspension, fall arrest and rescue/evacuation operations in confined spaces.

This anchorage allows you to install EASYSAFEWAY 1 masts (small model - ref. FA 60 105 03 and large model - ref. FA 60 105 04) combined with the FA 60 105 05 arm.

Material: Aluminium and galvanized steel
Weight: 31.72 kg

Compliance: EN 795:2012 Type B, TS 16415:2013 Type B (2 users).
Static strength as per EN 795:2012 Type B: 12 kN.
Min. breaking strength: 15 kN.

HS code : 76169990
