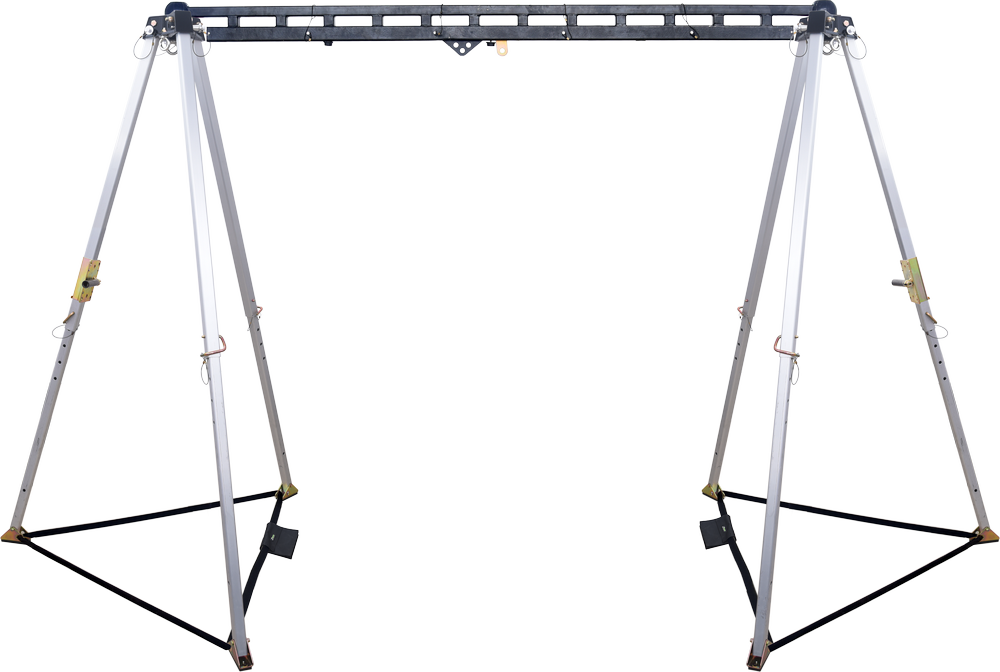

FA6010300 HEXAPOD Access gantry for confined spaces ATEX
HEXAPOD
Access gantry for entry, rescue and lifting into confined spaces having large openings and below the ground level.
Adjustable height: 1.15 m to 2.15 m
Wheelbase: 1.08 m to 1.62 m (1 tripod) / 1.80 m to 4.20 m (between the 2 tripods)
Weight: 49.33 kg
Max permissible load: 500 kg under head / 250 kg on leg
Conformity: EN795:2012 type B, TS 16415:2013 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808
- Equipped with a pulley placed on the tripod head for inserting the winch cable.
- Equipped with three anchorage rings on the tripod head
- Moulded tripod head in aluminium alloy, aluminium feet
- Feet equipped with articulated steel soles with rubber pads to increase friction and stability
- Resistance of anchor points > 13 kN
- Each tripod comes with a plate to install the winch FA6000320 / FA6000330 / FA6002320 / FA6002320R.
- It is also used in combination with universal plates FA6010101 or adaptation kits FA6000102/03/04, to install the self-retracting fall arrester with integrated rescue winch FA2040110/S, FA2040120/R/S, FA2040130/S.
- Tripods supplied with specific carry bag.
