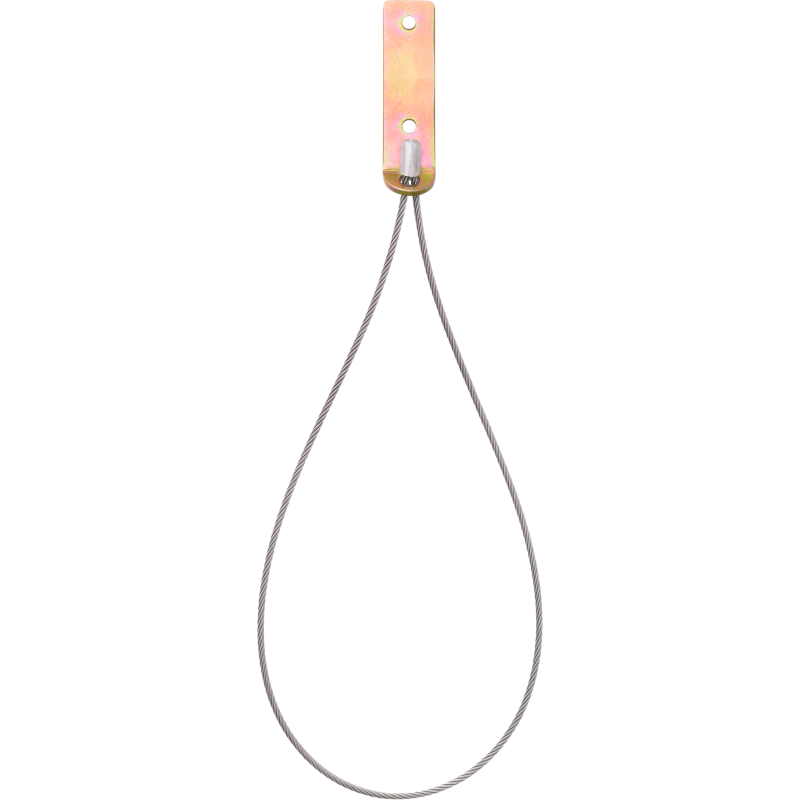

FA60030 04 Tile Anchorage

Tile anchor

- Can be installed on a wooden structure with the help of suitable fasteners (zinc-plated wood screws, diam. 8 mm).
- Permanently installed beneath the tiles, only the stainless steel cable comes out for easy use.
- Lightweight, easy to install.
- Minimum section on wooden structure: 75x100 mm.

Material: Wire rope: stainless steel ; fixing plate: galvanized steel.
Length of wire rope loop: 40 cm
Ø wire rope: 4.8 mm
Weight: 0.280 kg.
Number of users: 1
Compliance: EN 795:2012 Type A
Static strength > 12 kN
Breaking strength > 20 kN.
