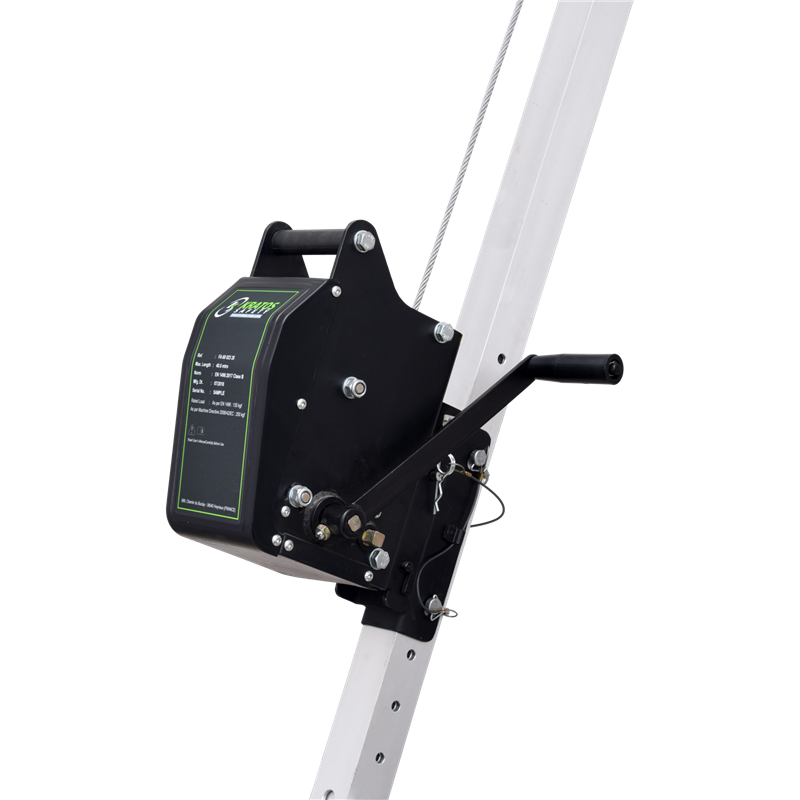

FA6002320 BELEM - Rescue and work winch (class B) - 20 m steel wire rope, for Tripod & MultiSafeWay

BELEM - Rescue and work winch (class B) - 20 m steel wire rope, for Tripod & MultiSafeWay
To be used for raising or lowering of personnel or material into confined spaces.
Features a disengageable mode, that allows to unroll a large distance of rope very quickly to perform a descent/lifting operation, without having to unroll the rope by turning the crank.
Secondary Brake mechanism.
Equipped with bolting fixture for robust fitting on to the Tripod (FA6000100 / FA6000200).

Can also be fixed on Tripod with head-mounted double pulley (FA6010100 / FA6010200) through the mounting bracket set FA 60 101 02, and on MultiSafeWay (FA6002200) through the mounting bracket set FA6002206.

Length: 20 m.
Galvanized steel cable diam : 6 mm.
Weight: 11.36 kg.

Compliance: EN 1496:2007 Class B, Machinery Directive 2006/42/EC and EN13157:2004.
Safe working load (as per EN 1496:2017): 135 kg.
Max. working load (as per Machinery Directive): 250 kg.
HS Code: 84253900
