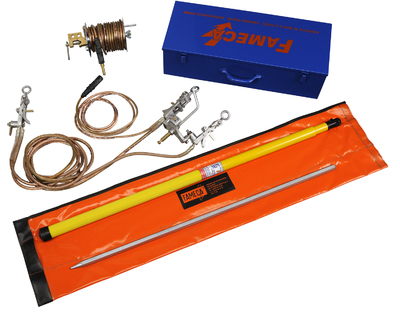

EY322 Earthing and short-circuiting device, with spring line clamps
STANDARD(S) : IEC 61230
USE : For cylindrical conductors on bare MV overhead lines.
Installed from the pylon.
SPECIFICATIONS :
Standard equipment includes:

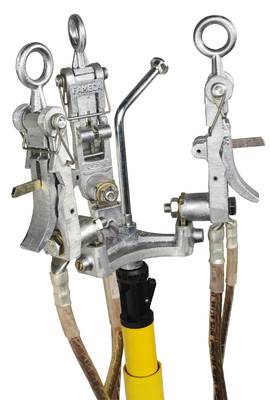

• 3 MT330 line clamps (8kA/1s) connected by the short-circuit cable,
• 2 short-circuiting cables, 35 mm², length 2.25 m or 2.75m,
• 1 T7021616 reel with earth cable, 16 mm² length 16 m and integrated clamp,
• 1 MT3 clamp holder plate,
• 1 earth rod, ref. 701, length 1 m.
• 1 telescopic stick, length 2 m, TR276APV,
Cases:
• 1 metal case
• 1 waterproof canvas soft case for the insulating stick and rod.
EY3221NFC = Isc: 8 kA/1s , Connecting cables: 35 mm² , For conductors: ø 3-20 mm , Short-circuit cable length (m): 2.25 , Weight (kg): 15
EY3222NFC = Isc: 8 kA/1s , Connecting cables: 35 mm² , For conductors: ø 3-20 mm , Short-circuit cable length (m): 2.75 , Weight (kg): 15.4
