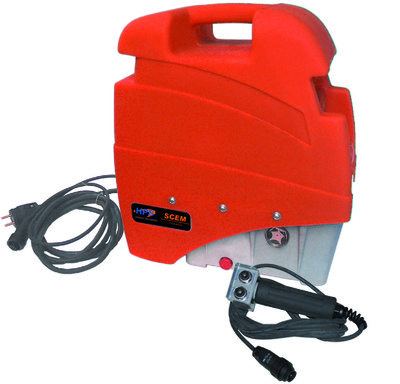

EH705 220V Electrical hydraulic power unit 700 bars

STANDARD(S) : IP 55 according to EN 60529

USE :
220V Electrical hydraulic power unit developing a maximum pressure of 700 Bar.
Connection to all types of 700 Bar hydraulic heads. Designed for a semi-intensive work.

SPECIFICATIONS :
Motor 550W single-phase 220V 50Hz.
Automatic stop of engine at 700 Bar.
Safety valve against overpressure risks.
Thermal circuit breaker to protect against electric motor overcharge.
Emergency control for manual return of piston.
Supplied with a 2 switches remote control (cable length : 3 metres) and 2 additional fuses 160 mA in bag.
Hoses and couplers are not included.
Optional wooden case (600 x 400 x 400 mm 13,5 kg) ref.CBEH705.
Case capacity : power unit, flexible hose and couplers, 1 hydraulic head + accessories.
NB : "European" type plug, on request we can find solution for specific areas.
Pressure: 700 bars
Flow: 1.2L/min LP - 0.4L/min HP
Oil capacity: 2L
Engine: 550 W
Sound level: LWA 91 dB(a)

ADVANTAGES :
Excellent weight/power/volume ratio.
Two-stage hydraulic system : fast advance and working advance.
