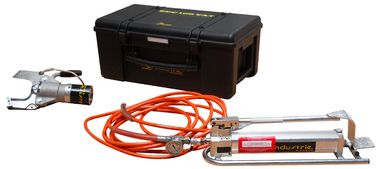

ECC100VATV2 Safety cable cutting device
STANDARD(S) : EN 50340:2011
USE : Cutting a cable to check and ensure the absence of tension on LV and MV underground cables before cutting them.
LV to HN 33 S 32 Districables up to, and including, 3x240mm² alu +1 x 95 mm² alu
MV to NFC 33320 and C33223: 3 x 240 mm² and 1x630 mm²
Old cables according to NFC 33.100
SPECIFICATIONS :
• TCC100 VAT V2 : Cutting head
- High strength jack
- Cutting blades made of specially heat treated steel to cut cable armoured
- Cutting capacity : max diameter 100 mm
- Cutting force : 9,6 tons
- Weight : 8,2 kg
• PHP.70.22 : Hydraulic pump
- Dual stage (two speeds) foot pump with capacity of the oil reservoir: 0.9 L
- Nominal pressure : 700 bars
- Max effort on the lever : 41 kg
- Equipped with a 10 metres long non-conductive flexible hose and pressure gauge to insure the security of the operator
- Weight : 8 kg
• Earthing flexible braid of 5 metres long for the cutting head + 1 metre for for the pump, section : 16 mm² with earthing clamp.
The device is supplied in a plastic trolley case.
ADVANTAGES : Operating from a distance of 10 metres, protecting the operator in case of hitting a live cable.
Robust design and easy to use.
