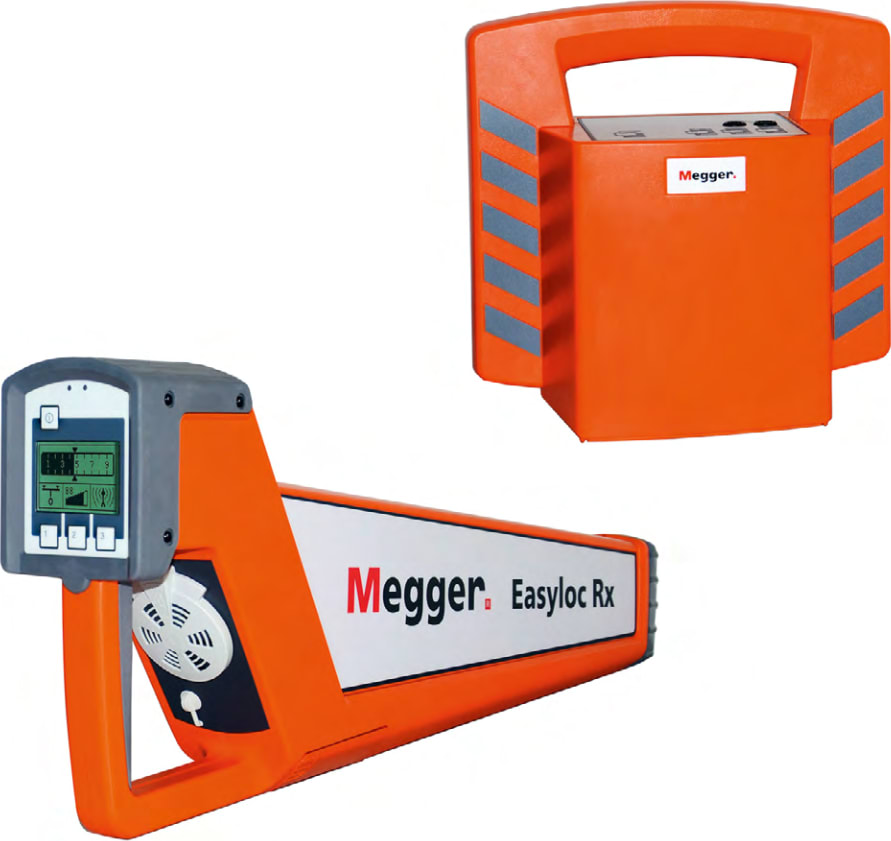

EASYLOC Utility line location system

USE : Utility location system to detect and trace cable runs and pipe networks. The Easyloc is fast and simple to operate, with features designed to avoid potentially dangerous power cables and other services as efficiently as possible.

SPECIFICATIONS :
Receiver :
Location depth : 0.3 to 7 m
IP56
Power supply : 10 x IEC R6 1.5 V
Dimensions : 100 x 670 x 260 mm / Weight : 2,5 kg
Transmitter :
Transmitted power : 0.1 W / 0.5 W (switchable)
Power supply : 6 x IEC R20 1.5 V
Dimensions : 140 x 260 x 255 mm / Weight : 2,6 kg
Contents : receiver, transmitter, earthing kit, earthing spike, carrying bag, operating instructions

ADVANTAGES :
• Make optimum preparations for your building work, quickly and reliably
• Avoid cable damage and help to minimise costly accidents and inconvenient delays
• Depth measurement at the push of a button, even without a transmitter
• 33 kHz – compatible with other location systems
• Large display with automatic backlight
• Quick and simple to operate
