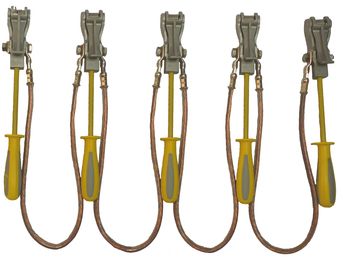

DMTBT3245 Short-circuiting and earthing device for bare LV overhead lines
STANDARD(S) : IEC 61230
USE : Device for short-circuiting, and if necessary, earthing LV networks.
Max. Isc : 6.7 kA/1s.
SPECIFICATIONS :
This equipment consists of:
• 5 aluminium alloy spring clamps mounted on insulating sticks (type BT324). Tightening capacity of the clamps from 3 to 24 mm. Overall length: 350 mm.
• 4 copper core PVC insulated cables with a cross-section of 35 mm² and length 0.5 m with lugs, connecting the clamps to each other.
• The set comes in a soft case.
ADVANTAGES :
Fast attachment/detachment
High short-circuit current
