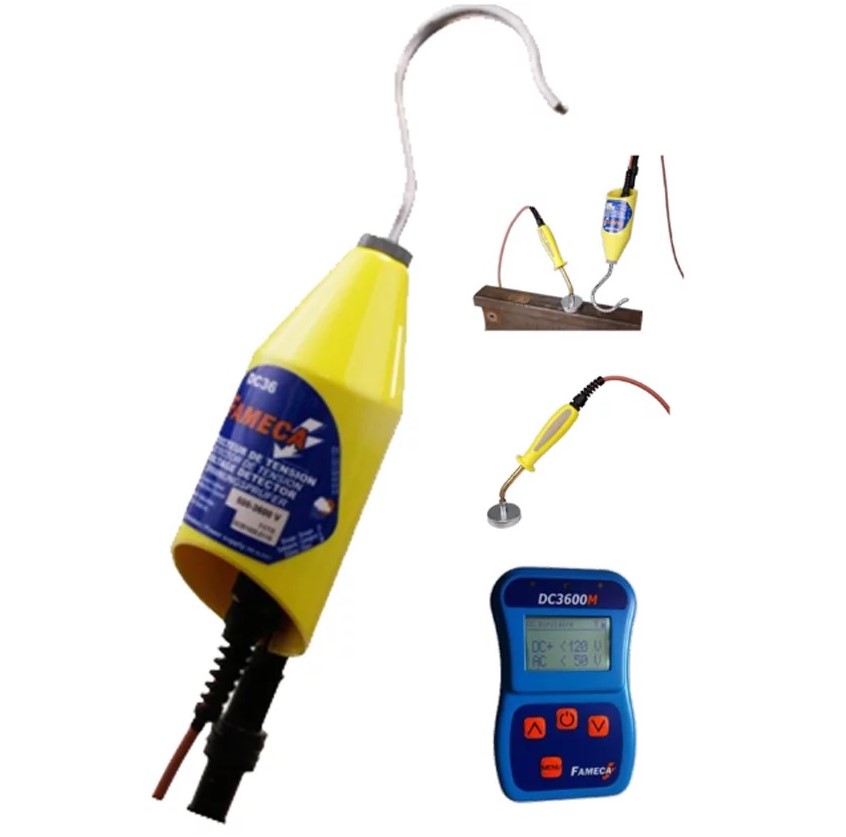

DC36 DC Bipolar voltage detectors, range 500 / 3.600 V DC

DC36 - DC3600 - DC3600BPM
DIRECT CURRENT VOLTAGE DETECTORS, BIPOLAR
DESIGNED ACCORDING TO IEC 61243-2
• Quick implementation of ground contact (rail for example) thanks to the magnetic handle.
• AFLEX flexible tip preserving the detector during emergency handling.
• Lightweight detector for better handling.
• Protected from temporary surges up to 36 KV AC
• Discharge indicator
• Electrode extension available on request (ANTDC400).

USE
These devices make it possible to carry out the Absence of Voltage Verification step on direct current overhead installations (mainly electric traction: tram, metro, train).
The DC3600BP and DC3600BPM models also provide indication of the presence of voltage from residual electrical charges (DC) and the presence of alternating voltage (induced or real).

FEATURES
• Double signaling of the presence of voltage: visual and/or audible indication.
• The current passing through the detector cable is always below the standardized dangerous threshold (3.5 mA)
• Design to withstand temporary overvoltages up to 36 kV
• Power supply: 9-volt alkaline battery – CEI / IEC 6LR61. For DC3600BP and DC3600BPM models
• Presence of real voltage visual and audible red indication.
• Presence of residual voltage (DC charging voltage) orange visual and audible indication.
• Presence of real or induced AC voltage blue visual indication.
• No voltage green visual indication.
• Self-checking device incorporated for control
(before and after use) for proper operation
of the device.

Voltage range / Tip / Conditioning
DC36 Simple detection DC voltage detector
Voltage range / Tip / Conditioning
DC36HR = 500-3600 V DC / AFLEX R / Bag
DC36HU = 500-3600 V DC / AFLEX U/ Bag
DC36HPV = 500-3600 V DC / AFLEX APV / Bag
DC36HB = 500-3600 V DC / AFLEX B / Bag

DC3600BP
Detection of direct voltages + indication of presence of residual voltages during discharge + indication of presence of real or induced alternating voltages
Voltage range / Tip / Conditioning
DC36BPHR = 500-3600 V DC / AFLEX R / Bag
DC36BPHU = 500-3600 V DC / AFLEX U/ Bag
DC36BPHPV = 500-3600 V DC / AFLEX APV / Bag
DC36BPHB = 500-3600 V DC / AFLEX B / Bag

DC3600BPM
Detection of direct voltages + indication of presence of residual voltages during discharge + indication of presence of real or induced alternating voltages + remote display module
Voltage range / Tip / Conditioning
DC36BPMR = 500-3600 V DC (voltage indication on remote module from: 50 V AC and 120 V DC) / AFLEX R / Robust and waterproof suitcase
DC36BPMU = 500-3600 V DC (voltage indication on remote module from: 50 V AC and 120 V DC)/ AFLEX U/ Robust and waterproof suitcase
DC36BPMPV = 500-3600 V DC (voltage indication on remote module from: 50 V AC and 120 V DC)/ AFLEX APV / Robust and waterproof suitcase
DC36BPMB = 500-3600 V DC (voltage indication on remote module from: 50 V AC and 120 V DC) / AFLEX B / Robust and waterproof suitcase
