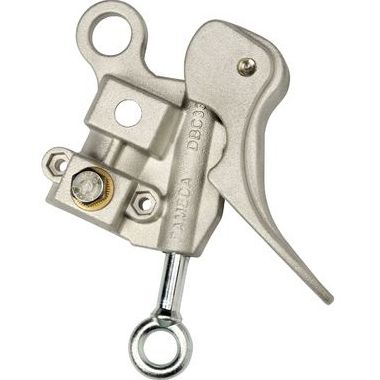

DBC332 Duck Bill clamp (Spring pre-positioning clamps)

STANDARD(S) : IEC 61230

USE : For short-circuiting and earthing bare overhead lines from the post.

SPECIFICATIONS :
Clamping range on line conductor 3 to 32 mm.
Maximum allowable short-circuit current: 25 kA/1s
The clamp can be fitted with an attachment rod for one or two other phase clamps.
This attachment rod can take a TFK type connection with DIN lugs with a 10 mm stud hole.
Made to measure short-circuiting and earthing equipment available on request.

ADVANTAGES : Lightweight, compact clamp fitted with a spring enabling it to be pre-positioned on the conductor so that it stays in place even before the clamp is screwed tight.

TABLE LEGEND : Other end fittings available on request.

DBC332CR = DuckBill clamp with ring end fitting (for hooked stick)
DBC332B = DuckBill clamp with Bayonet end fitting
DBC332AN = DuckBill clamp with bight end fitting
DBC332HE = DuckBill clamp with hexagonal end fitting (26 mm)
DBC332xx1 = Duckbill clamp with an attachment rod for 1 other phase clamp
DBC332xx2 = Duckbill clamp with an attachment rod for 2 other phase clamps
