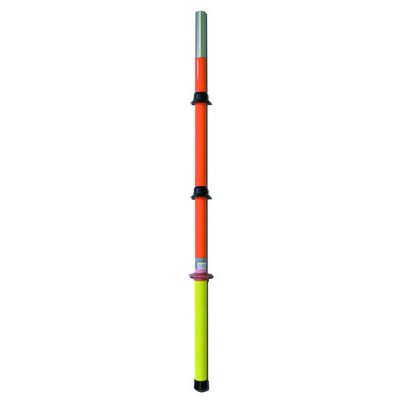

CHI31 Insulating stick for operating CHC31 low point extensions
STANDARD(S) : IEC 61230 / IEC 60855
USE : Insulating stick specifically for placing the CHC31 low point extension conductor stick.
SPECIFICATIONS : Made of IEC 60855 type foam-filled tube, Ø 39 mm, colour orange.
Equipped with a female CH end fitting permanently mounted on the stick, 2 neoprene protective skirts, a hand guard and ribbed non-slip grip.
1-section stick, 3.2 or 4.5 m, with an insulated part equal to the CMAD for 225 kV and 400 kV.
Other lengths: please enquire.
CHI31300 = Max operating voltage: 225 kV , Length (m): 3.22 , Insulating length (m): 1.85
CHI31400 = Max operating voltage: 400 kV , Length (m): 4.47 , Insulating length (m): 3.1
CHI31200 = Max operating voltage: , Length (m): , Insulating length (m):
CHI31250 = Max operating voltage: , Length (m): , Insulating length (m):
CHI31340 = Max operating voltage: , Length (m): , Insulating length (m):
