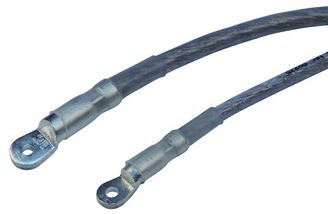

CAS connections, sheathing Silicone

STANDARD(S) : IEC 61230

USE : Provides the aluminium connection between the line clamps and the earth clamps in portable earthing and short-circuiting devices.

SPECIFICATIONS :
Crimped connection sealed by heat shrinkable tubing with adhesive.
CAP type : connection made with extra flexible PVC sheathed cable (ST11) for use from -25°C to +55°C.
CAS type : connection made with silicone sheathed cable for use from -40°C to + 70°C.

TABLE LEGEND : Ohter connections available on request.

CAS700275 = Cross-section: 70 mm² , Cable length (m): 2.75 , Stud hole diameters (mm): Ø10
