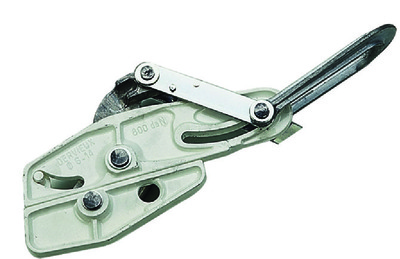

Cable clamps with aluminium alloy jaws

USE : Application for overhead power line networks.
Allows traction to be applied by distributing the clamping force over the entire length of the jaws..

SPECIFICATIONS :
Aluminium cable clamp for non-insulated cables.
Plastic-coated cable clamp for insulated cables (e.g. twisted cables).
Anchor shackle for applying tensile force.

ADVANTAGES :
• Aluminium alloy cable clamp for optimum weight.
• Long cable grip length.

G08 = Cable Ø: 10-20 mm , Tightening length (mm): 175 , Specificity: Aluminium jaws , Capacity Aluminium: 59.7-228 mm² , WLL (daN): 1400
G10 = Cable Ø: 6-14 mm , Tightening length (mm): 160 , Specificity: Aluminium jaws , Capacity Aluminium: 22-117 mm² , WLL (daN): 800
G12 = Cable Ø: 6-13.5 mm , Tightening length (mm): 160 , Specificity: Epoxy coated jaws , LV capacity: Twists with neutral carrier 54.6 or 70mm² , WLL (daN): 800
G09 = Cable Ø: 10-20 mm , Tightening length (mm): 175 , Specificity: Epoxy coated jaws , LV capacity: Twists with neutral carrier 54.6 or 70mm² , MV capacity: Twists with carrier 50mm². , WLL (daN): 1400
