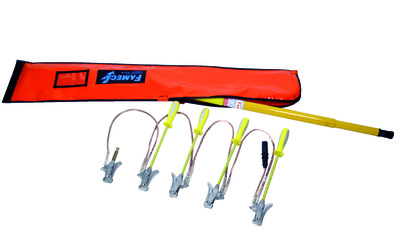

BT318_N Earthing and short-circuiting equipment for bare LV overhead lines
STANDARD(S) : IEC 61230
USE : Device for short-circuiting and if necessary earthing bare LV overhead lines.
SPECIFICATIONS :
For bare conductors, Ø 3 to 18 mm.
Max. Isc: 3 kA/1s
Composition:
• 3 to 6 light alloy spring clamps on 0.40 m insulating sticks.
• 1 spring clamp for use with operating stick.
• 1 set of extra flexible copper jumper cables, 16 mm², 0.70 m in bypass connection, with one connection to the earth cable with a type N quick bayonet connector.
• 1 telescopic fibreglass insulating stick, 2 m.
• 1 storage cover.
BT3184N = Composition: 4 clamps and 3 sticks , Weight (kg): 3.32
BT3185N = Composition: 5 clamps and 4 sticks , Weight (kg): 3.74
BT3186N = Composition: 6 clamps and 5 sticks , Weight (kg): 4.16
BT3187N = Composition: 7 clamps and 6 sticks , Weight (kg): 4.58
