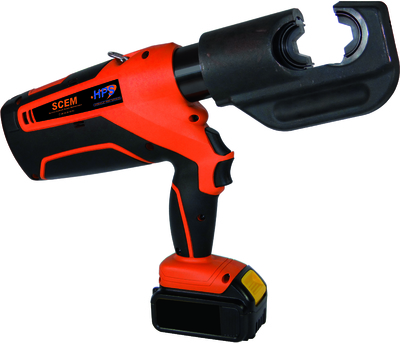

BP13038 Battery operated crimping tool

USE : Hydraulic crimping tool operated by battery 18V Li-ion 4.0 Ah, for crimping connectors from 10 to 400 mm².

SPECIFICATIONS :
Simple display panel with light diode for battery charge level, crimping failure and maintenance control.
Open C crimping head, 320° rotatable with interchangeable dies and wide crimping
Robust plastic housing with rubber grip handle.
Ergonomic design with On/ Off button.
Large and ergonomic triggers with electronic speed control in the trigger allowing a perfect control of the approach before crimping.
Anti-corrosion treatment on the head.
Workplace illumination by LED.
Handling ring for safety cable or transportation.
Semicircular dies common to all 130 kN hydraulic tools.
Quick motor stop function for high user safety.
Automatic release with an audible "click" when the force of 130 kN is reached.
Return of piston by release trigger.
USB connection for data analysis & preventive maintenance with dedicate software.
Pressure safety system to prevent over pressure failures.
Energy saving function by stopping tool after 10 minutes unused.
18V Li-Ion battery, high performance with short charging time.
Made in France.
Periodic inspection frequency : 1 year or 15 000 cycles.
This tool is supplied with 2 batteries and 1 charger.
Delivered in a plastic case (592 x 495 x 115 mm) that can contain 24 die sets.
NB : "European" type plug (charger), on request we can find solution for specific areas.
Stroke: 38 mm
Hexagonal crimping: 6 - 400 mm²
Battery: 18 V - 5 Ah

ADVANTAGES :
Balanced centre of gravity for easy handling and effortless operations.
Max. weight/power ratio.
Double control of the crimping quality by the operator.
Accepts all brands of dies.
