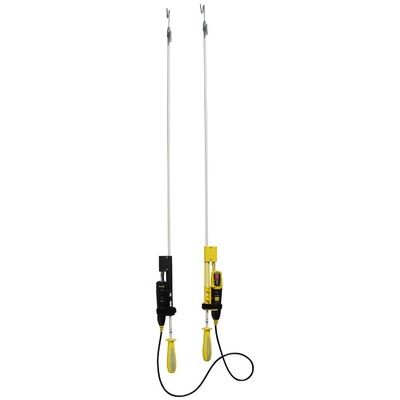

ANT780 Probe extension set for TAG780

USE : The probe extension set enables the operator to use the voltage detector TAG780 on overhead networks and connection boxes.

SPECIFICATIONS :
Composition :
• Ø10 mm fiberglass sheath, Ø 4 mm connection probes, Ø 4 mm contact tips.
• Reliable impact-resistant internal connection even if device is dropped.
• Length adapted to the needs of the operator (short model for bus bars, long model for overhead lines).
• Contact parts adapted to the type of use.
ANT780I – ANT780P : Extension set for overhead network and connection box
• Contact parts for use as hanging brackets
• Storage case
ANT780RS – ANT780PRS : Extension set for connection box
• Soft case

ANT780RA = Type of Device: TAG780 IP2X , Use: Kit for overhead (RA) and connection box (RS) , Length (mm): 1400 , Weight (g): 750
ANT780PRA = Type of Device: TAG780 non IP2X , Use: Kit for overhead (RA) and connection box (RS) , Length (mm): 1400 , Weight (g): 750
ANT780RS = Type of Device: TAG780 IP2X , Use: Connection box (RS) , Length (mm): 780 , Weight (g): 550
ANT780PRS = Type of Device: TAG780 non IP2X , Use: Connection box (RS) , Length (mm): 780 , Weight (g): 550

SIBILLE FAMECA Electric

SIBILLE FAMECA Electric is a major actor in electrical risk prevention equipment as well as construction and network management equipment. As a member of the ESP division (Electrical Safety Products), SFE relies on the experience from its own manufacturing plants in Europe to offer its customers high-performance solutions for all three voltage fields (LV, MV and HV) all Made in EU.
