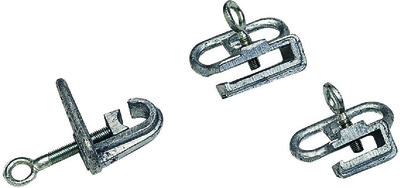

Anchor clamp

STANDARD(S) : FT BT 320B

USE : The anchor clamp is used to make the fixed anchoring point of 1 or 2 LV aerial bundled connections from an LV overhead network with bare conductors.

SPECIFICATIONS :
Anchor clamp with cast iron body.
It is equipped with a ring clamping screw. The shape of the jaws is adapted to the armament.
The double elongated eye of the vice receives the insulated hook of the anchor clamp for taking up the mechanical tension.

ADVANTAGES :
• Clamp used to create an anchor point on a LV armament.
• It is set up with a hooked pole.

TE40EAC = Anchor clamp small A type for round parts , Version: Round bar mounting , Tightening capacity: Ø 26 mm , Dimensions: 140 x 100 x 65 mm , Weight (g): 450
TE45EAD = Anchor clamp large D type for flat parts , Version: Large plate mounting , Tightening capacity: 40 to 60 mm - thikness 8 to 10 mm , Dimensions: 100 x 95 x 70 mm , Weight (g): 590
TE50EAS = Anchor clamp small C type for flat parts , Version: Small plate mounting , Tightening capacity: 35 to 40 mm - thickness 7 to 8 mm , Dimensions: 100 x 90 x 50 mm , Weight (g): 360
