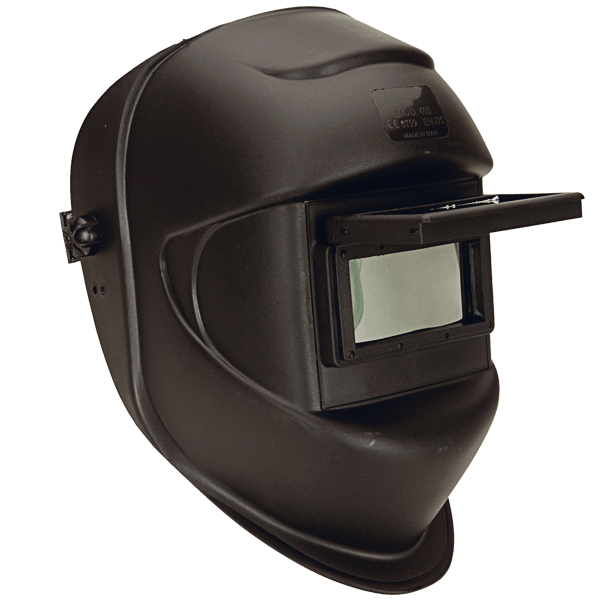

405-CPA Welding shield flip-up filter

The Climax head-type welding shield model 405-CPA is designed to provide effective protection against radiation emitted during welding processes, as well as any incandescent particles that may be released during such processes.

The frame is made out of polypropylene. The screen covers the user’s face and neck, protecting him/her from any potential burns.
The fastening system is made up of a harness with two straps, one for the girth and the other crossing the first. The perimeter of the girth strap can be comfortably adjusted using the wing nut located at the rear. The length of the crossing strap can also be adjusted to seven different positions. The girth strap is padded to prevent discomfort in the places where it comes into contact with the user’s head.

The Shield’s frame is fitted with a rectangular cavity to house the filter eyepiece, which is made of non-actinic glass and measures 110x90 mm or 110x55 mm and is EC certified. The eyepiece is fastened by means of an inner rectangular frame, which is attached to the main frame using screws. In addition, the screen has an external 1 mm thick filter cover made of colourless polycarbonate, which protects the non-actinic filter from particles and impact. The standard screen is manufactured with a tone 12 nonactinic filter, although a wide range of tones are available

Shades availables 9 - 13
Welding glass measurements
105 x 50 mm
108 x 51 mm
110 x 50 mm
110 x 55 mm
110 x 60 mm
Harness size 56 - 64 cm
Weight 430 g

Test / CE Certification
EN 169
EN 175
