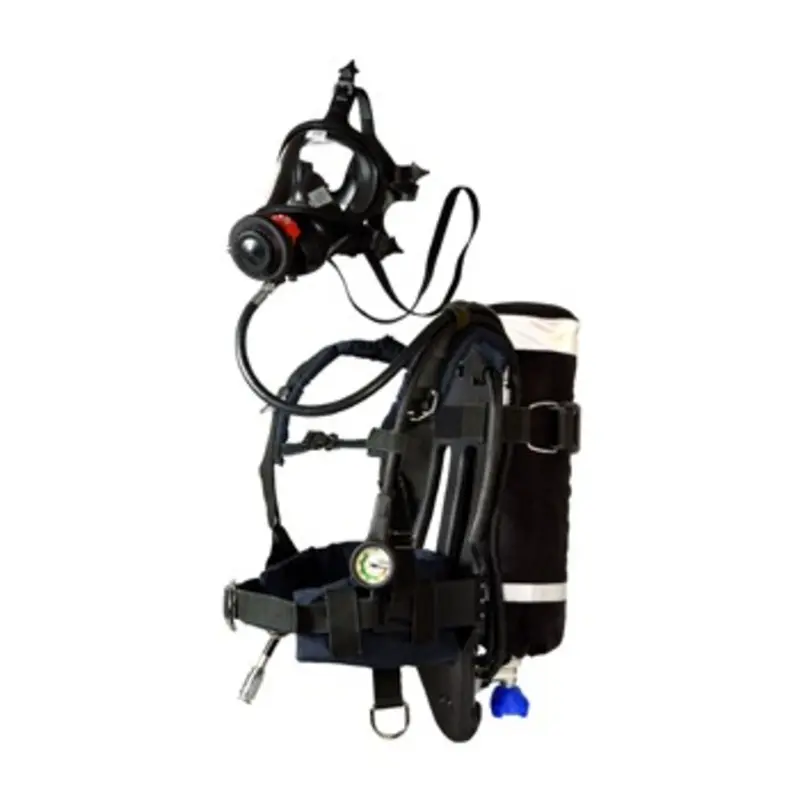

40092FRKT RN A FR TR 2002 WITHOUT CYLINDER (MED)
RN FR is a type 2 Self Contained Breathing Apparatus specifically
designed for fire fighting.
RN FR adds the highest degree of safety and comfort to the efficiency,
versatility and simple use. Materials and technologies employed in
FR models are of the highest standard and they are all used to make
the breathing apparatus components very high resistant to flames
and able to resist to Flash Over test as per EN 137:2006 standard.
RN FR is fitted with an automatic demand valve which keeps a
positive pressure in the mask thus avoiding any possible inward
leakage of contaminated air from the outside. Should it become
necessary, the positive pressure mode can be activated by acting on
the special button that acts as a supplementary air command, too.
The demand valve is connected to the medium pressure hose by
means of a quick coupling which allows it to be disconnected very
easily for maintenance. The medium pressure hoses of the reducer
and of the demand valve are covered by a special Kevlar sleeve to
protect them from flames.
RN FR takes advantage from the unique RN System warning built
into the demand valve. This is activated when the pressure left in the
cylinder drops below 55 bar. The signal originates from a sounding
vibration caused by every inhalation. In this way the full capacity of
cylinder is made available to the user for breathing. The acoustic
warning is related to the respiratory frequency of the user and allows
the user to distinguish his own signal from those emitted by nearby
fellows or noise (Self Test Function). The location of the warning device protects it from frost or dirt.
The back plate is made of vacuum formed polypropylene, it is extremely robust and anatomically shaped to allow
a comfortable distribution of weight and remains steady on the wearer’s back even when crouching or crawling.
The supporting harness is provided with a special padding to increase comfort and with a soft belt in the hips
area which increases portability of the equipment. All harnesses and padding are in aramidic and para-aramidic
material and self-extinguishing foams. Special handles integral with the backplate are provided for carrying the
set along. The pressure reducer keeps the outlet pressure constant throughout the emptying of the cylinder and
is connected to an easy to read phosphorescent gauge. The cylinder has a pressure of 300 bar and is fitted with
a valve according to EN 144.
TECHNICAL DATA
Pressure Reducer: piston with compensator
Automatic Demand Valve: with integral alarm device and supplementary supply button
Setting of the Alarm: 55 ± 5 bar
Cylinder Capacity: 300 bar
CLASSIFICATION
Certified Type 2 to ISO 23269-2:2011 and meeting with the provisions of Regulation (EU) 2016/425, 2014/68/
UE (PED) and 2014/90/UE (MED) e ATEX*.
