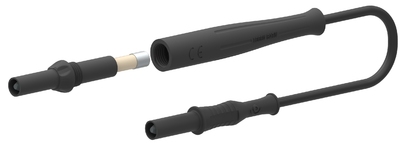

12000 series Ø4 mm lead with fuse

STANDARD(S) : 1000V CAT IV COMPLIANT, REINFORCED INSULATION, DEGREE OF POLLUTION 3, ACCORDING TO EN/IEC 61010-031:2008 ACCORDING TO LCIE REPORT 126340-653092-B. COMPLIANT WITH EUROPEAN DIRECTIVES DBT 2006/95/EC AND ROHS 2011/65/EU AND CE MARKING.

USE : Ø4mm lead with fuse for connection to test and measuring instruments such as multimeters. The tip end has a fuse to allow connection close to the source of hazardous voltage so as to protect the user and/or the device located downstream from the source. That design reduces the risks of injury and/or damage due to accidental short circuits.

If the fuse blows, it can be replaced simply by unscrewing the Ø4mm tip end.

SPECIFICATIONS :
Type 12300
Lead : Fused Ø 4 mm male straight plug to Ø4 mm male straight plug. Cross-section : 1 mm² , PVC double insulated
Length : 100 cm
Weight : 55 g
Protection : Fuse 1A HPC@50kA, Ø6x32 mm.
Dedicated voltage : 1000V CAT IV
Dedicated intensity : 10A max. (according to the fuse used).
Operating temperature : 0°C to +40°C
Type 12400
Lead : Fused Ø 4 mm male straight plug to Ø4 mm male 90° bent plug. Cross-section : 1 mm² , PVC double insulated
Length : 100 cm
Weight : 55 g
Protection : Fuse 1A HPC@50kA, Ø6mm x 32mm.
Dedicated voltage : 1000V CAT IV
Dedicated intensity : 10A max. (according to the fuse used).
Operating temperature : 0°C to +40°C

12312-IEC-1A-100R = Red
12412-IEC-1A-100N = Black
12312-IEC-1A-100N = Black
12412-IEC-1A-100R = Red
