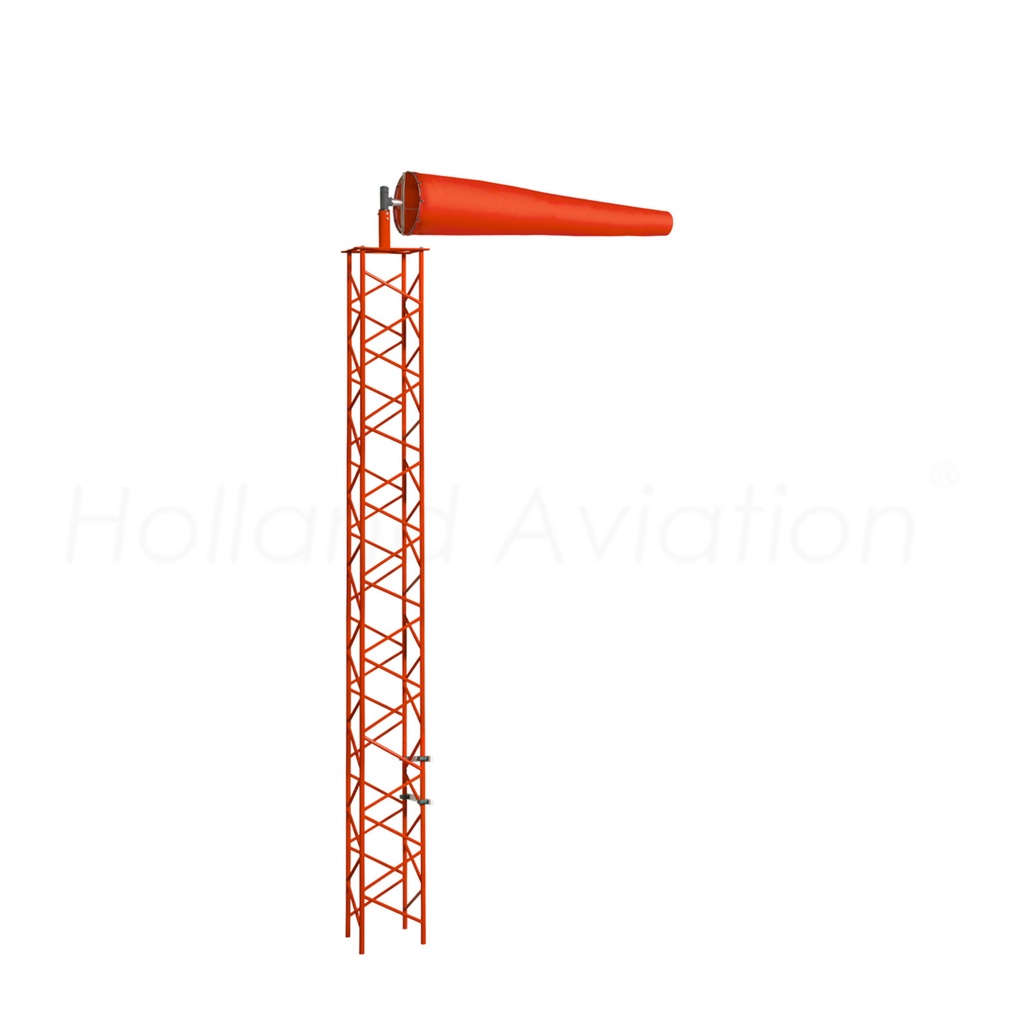

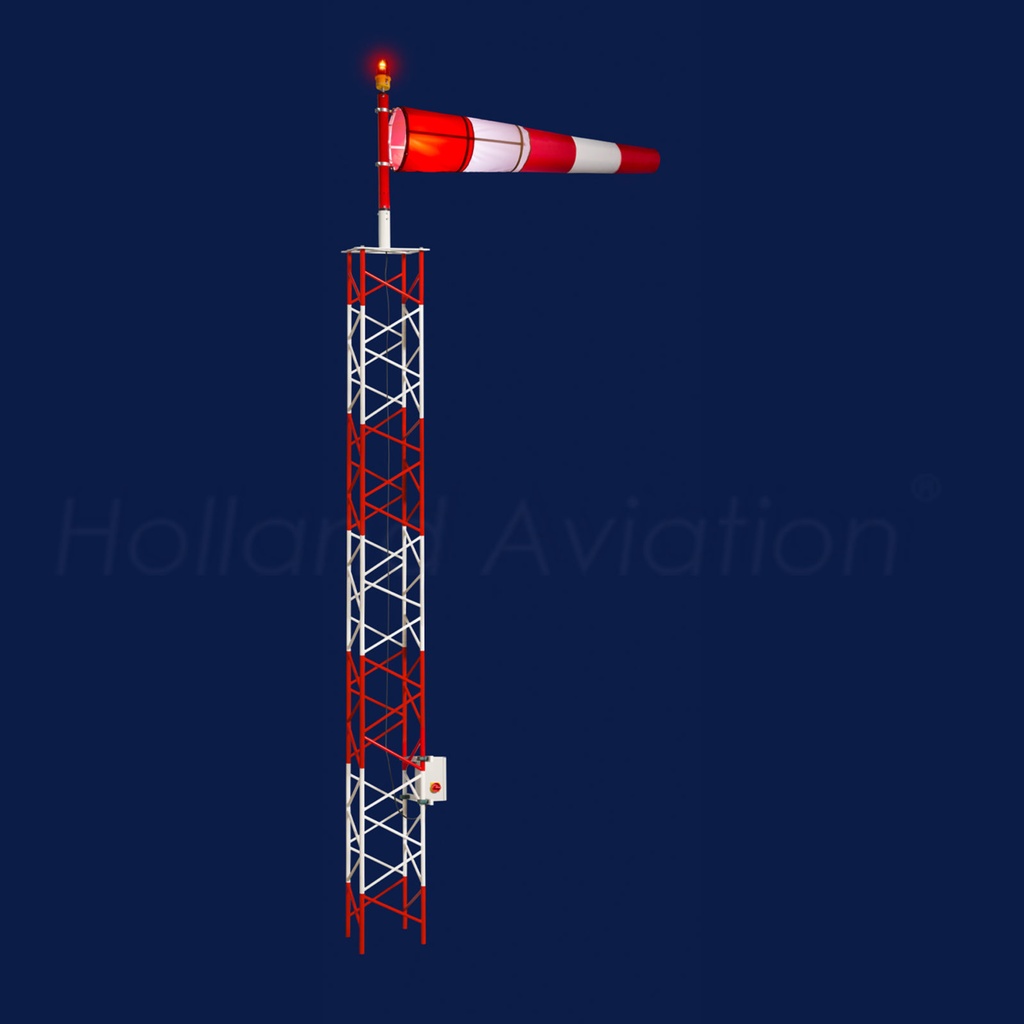

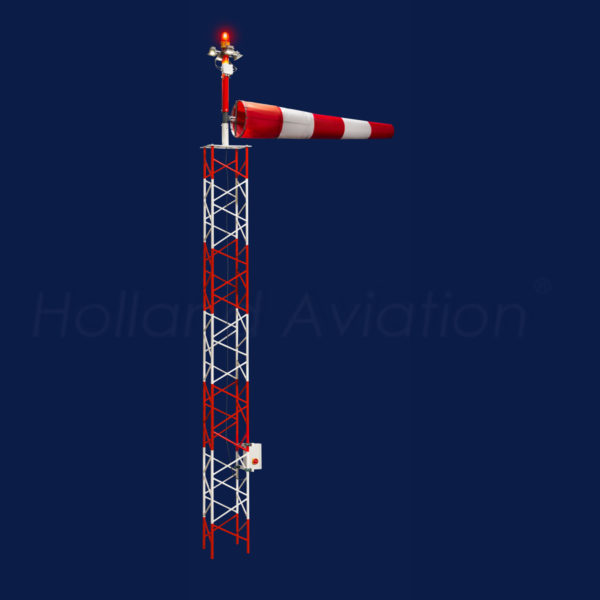

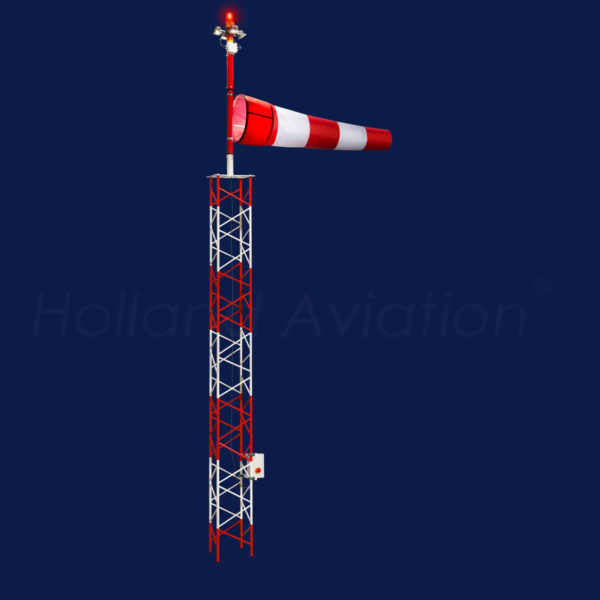

L807Exel Windsock assembly, (5.25m EXEL Mast)
The HA-L807 EXEL is a reliable wind direction and wind speed indication. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or slip-rings. Due to its unique design maintenance cost and power consumption are low. The hinged base enables easy replacement of the windsock.
COLOURS FAA-orange and ICAO-red/white
WINDSOCK SIZE Ø45x250cm, Ø90x375cm
WINDSOCK MATERIAL Polyester, PU coated, approx. 185 gr/m²
WINDSOCK FRAME MATERIAL Stainless steel AISI 316L
SWIVEL HEAD 2 heavy duty sealed stainless steel bearings
MAST LENGHT 5250mm EXEL mast (for dimensions see other side)
MAST MATERIAL EXEL mast: Glass Fiber Composite Top and light: T50 aluminium
FOUNDATION BASE Galvanised steel
LIGHTING STYLES Unlighted, externally, internally, double lighted
POWER SUPPLY 90-240VAC or 6,6A
POWER CONSUMPTION
Internal Lighting: 12 Watt
External Lighting: 40 Watt
Double lighted: 52 Watt
Obstruction Light: 5 Watt
INGRESS PROTECTION IP65
AMBIENT TEMPERATURE -40°C to +60°C
COMPLIANCES
ICAO Annex 14 Vol. I Aerodromes
ICAO Annex 14 Vol II. Heliports
FAA AC150/5345-27
UK CAA CAP 168 and CAP 437
EASA ADR
| Windsock assembly options | Unlighted or Internally Lighted or Double Lighted or Externally Lighted |
| Color | ORR Orange or RWR Red/White |
