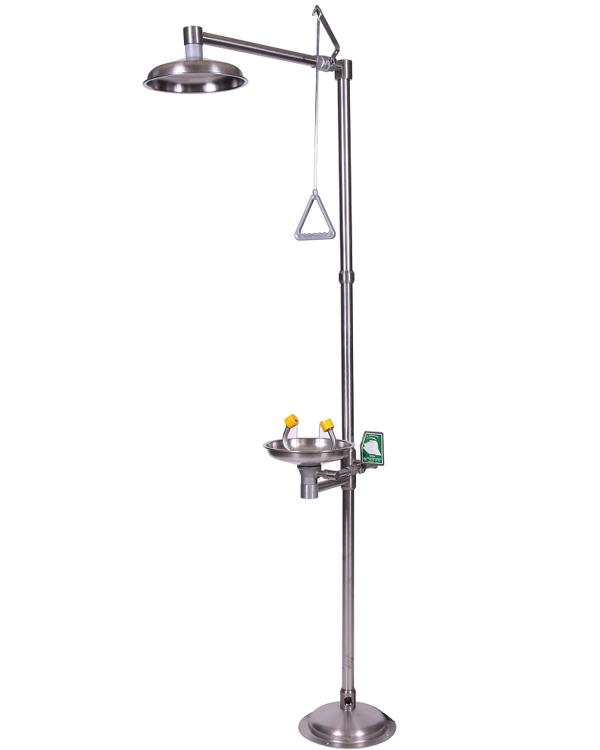

Combined Unit, ISTEC Type ESW, Pedestal Type, Hand/O Shower and Eyewash
The ISTEC TYPE ESW Combined Unit, Pedestal Type, Pull Handle Fixing and Push Handel Operated Emergency Shower is designed to provide rapid and effective intervention during accidental incidents in hazardous work environments. It is manufactured in compliance with ANSI/ISEA Z358.1-2014 and EN 15154-1, EN 15154-2, EN15154-5 standards and is certified accordingly.
This product is highly preferred in industries such as chemical, petrochemical,
pharmaceutical, food, metal processing, and other sectors.
Product Features:
- Durable and Aesthetic Design: ISTEC TYPE ESW features a stainless steel structure, offering durability and an aesthetic appearance. It is suitable for floor mounting with its own base. It saves space and maintains order in the workspace.
- Certified for Safe Use: Our ATEX-certified (explosion-proof) models are available for safe usage in hazardous environments.
- Manufactured to Standards: Produced and certified in accordance with ANSI/ISEA Z358.1-2014 and EN 15154-1, EN 15154-2, EN15154-5 standards.
TECHNICAL DETAILS
Water Flow: Minimum continuous water flow of 11.4 liters per minute for 15 minutes for the eye/face wash and 75.7 liters per minute for 15 minutes for the body shower.
Water Temperature: Can be stabilized between 16-38 °C with a thermostatic valve
Connection Type: It is mounted to the floor with its own base
Material: All pipes can be optionally manufactured in stainless steel or galvanized and painted steel. Manufacturing of galvanized products can be customized to the specified color requirements.
Bowl Material: Available in stainless steel, galvanized and painted steel, or ABS upon request
Bowl Diameter: 300 mm
Activation: Emergency shower is operated by a pull handle and the eye/face wash is operated by a hand control.
Water Inlet: 1ʺ pipe connection
Water Outlet: 1ʺ pipe connection
Body Pipe: 1 1/4ʺ diameter
Weight: Stainless Steel Model: 18,9 kg / Galvanized Model: 18,4 kg
Emergency Shower : Pull Rod operated
Eye-wash Fountain : Push Handle Operated
CE Mark
ANSI/ISEA Z358.1-2014
ANSI/ISEA Z358.1-2014 (Plumbing)
EAC/GOST-R
Meets requirements of ANSI standard.
EN 15154-1
EN 15154-2
EN 15154-5 Class II (75 Liter/min)
EAC
P/No: 15031000 (Stainless Steel)
P/No: 15031500 (Galvanized and Painted)
| PPE | |
|---|---|
| Eye Face & Body Wash Type | Stainless Steel or Galvanized and Painted Steel |
| Others | |
| Color | GNR Green or SIR Silver |
