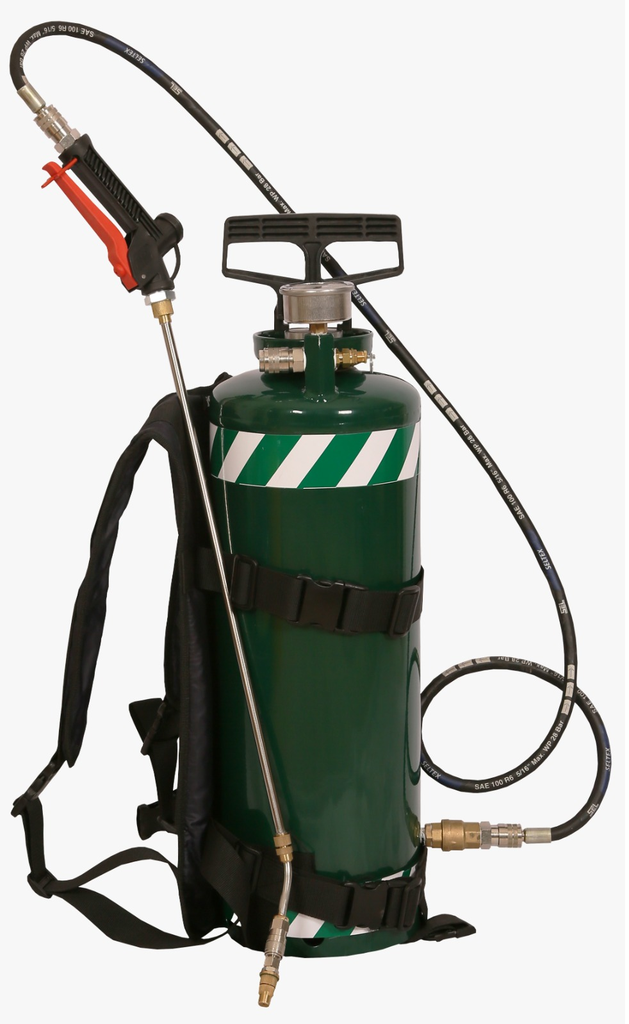

ISTEC DM10 Liter Portable Decontamination System

Stainless steel tank with 10 LT liquid capacity, resistant to 10 bar test pressure.
It has a manual internal pressure pump system.
Stainless steel lance with locking mechanism and adjustable nozzle.
There is a pressure manometer on the tank.
It has a quick-fit coupling system resistant to breakage and bending for the tank-lance connection.
It has an externally attachable backrest system for easy and comfortable transportation of the warehouse.

Equipments of the units;
1) Water tank (10 liter)
Material: Stainless Stell 304
Color: khaki green
Water volume: 10 liter
Air volume: 4 liter
Thickness: 2 mm
Lower and upper bow are assembled to the body with weld.
Usage pressure: 5-6 bar
Test pressure: 10 bar
Can be filled and emptied from the top.

2) Hand pump;
Provides pressure which can spray all the liquid in the tank completely.
Mechanical locking system.
Provides 5-6 bar pressure

3) Safety Valve;
Screw connection
Device pressure automatically switches on when it reaches 8 bar.
Device’s pressure automatically
Material: Brass

4) Air Inlet Manometer;
Screw connection
Works between 1-16 bar
Material: 304 Stainless Steel
Works with maximum 0,5 bar sensetivity.

5) 1 Liter Measuring cup;
Material: Plastic
Measures 1 liter liquid volume with maximum 100 mm sensitivity.

6) Carrying Apparatus;
Material: Sentetic
Back support flange
Adjustable belt.
Support belts on upper, middle and lower connected to the tank.
There is a zone that gun system can be assembled

7) Spray gun;
Opening and locking the trigger mechanism.
Tank can spray the cleaning material to minimum 5 meters.
The length of the gun barrel is 50 cm.
Gun barrel material: 304 stainless steel.
Gun trigger material: plastic

8) Spray Nozzle;
Material: Brass
It can be adjusted as spray and point spray.
The connection point to the spray gun is connected to the coupling.
Nozzle joint is sealed.
