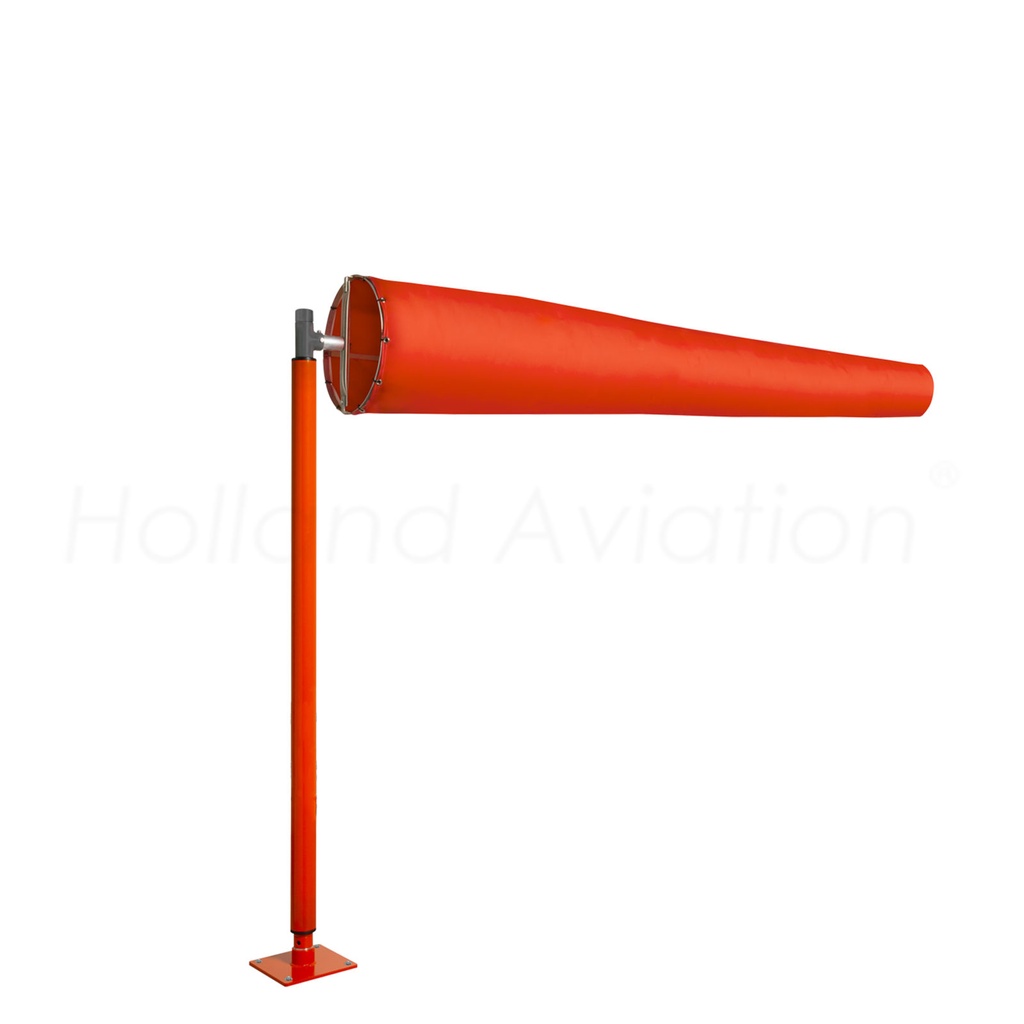

L806 Windsock assembly, (1.8m Mast)
The HA-L806 is a frangible, reliable wind direction and wind speed indication. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or slip-rings. Due to its unique design maintenance cost and power consumption are low.
COLOURS FAA-orange and ICAO-red/white
WINDSOCK SIZE Ø45x250cm
WINDSOCK MATERIAL Polyester, PU coated, approx. 185 gr/m²
WINDSOCK FRAME MATERIAL Stainless steel AISI 316L
SWIVEL HEAD 2 heavy duty sealed stainless steel bearings
MAST DIAMETER 80mm
MAST LENGHT 1800mm
MAST MATERIAL T50 Aluminium (powder coated)
BASE: FRANGIBLE COUPLING AlMg4,5 (powder coated)
LIGHTING STYLES Unlighted, externally lighted, internally lighted
POWER SUPPLY 90-240VAC or 6,6A
POWER CONSUMPTION Internal Lighting: 12 Watt
External Lighting: 40 Watt
Obstruction Light: 5 Watt
INGRESS PROTECTION IP65
AMBIENT TEMPERATURE -40°C to +60°C
COMPLIANCES
ICAO Annex 14 Vol. I Aerodromes
ICAO Annex 14 Voll II. Heliports
FAA AC150/5345-27
UK CAA CAP 168 and CAP 437
EASA ADR
| Windsock assembly options | Unlighted or Internally Lighted or Internally Lighted 6.6A or Externally Lighted |
| Color | ORR Orange or RWR Red/White |
