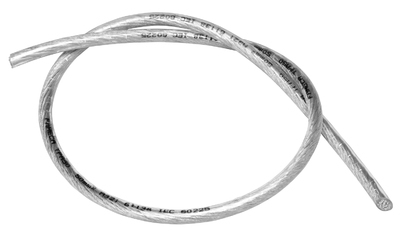

Flexible aluminium earthing and short-circuiting cables

STANDARD(S) : IEC / EN 61138

USE : Cable for portable earthing and short-circuiting devices according to IEC 61230 (EN 61230).

SPECIFICATIONS :
TAP type : extra flexible PVC sheathed aluminium cable (ST11) for use from -25°C to +55°C.
TAS type : silicone sheathed aluminium cable for use from -40°C to + 70°C.

TAP35 = Cable cross-section: 35 mm² , Ø over alu core: 11.4 mm , Cable heats up to 350°C at end of s/c: 7kA/0.5s - 5k1/1s , Item n° with silicone sheath: TAS35 , Weight (g): 110
TAP50 = Cable cross-section: 50 mm² , Ø over alu core: 14 mm , Cable heats up to 350°C at end of s/c: 10kA/0.5s - 7k1/1s , Item n° with silicone sheath: TAS50 , Weight (g): 180
TAP70 = Cable cross-section: 70 mm² , Ø over alu core: 12 mm , Cable heats up to 350°C at end of s/c: 14kA/0.5s - 10k1/1s , Item n° with silicone sheath: TAS70 , Weight (g): 250
TAP95 = Cable cross-section: 95 mm² , Ø over alu core: 13 mm , Cable heats up to 350°C at end of s/c: 19kA/0.5s - 13.5k1/1s , Item n° with silicone sheath: TAS95 , Weight (g): 330
TAP120 = Cable cross-section: 120 mm² , Ø over alu core: 15.1 mm , Cable heats up to 350°C at end of s/c: 24kA/0.5s - 17.5k1/1s , Item n° with silicone sheath: TAS120 , Weight (g): 440
TAP150 = Cable cross-section: 150 mm² , Ø over alu core: 18 mm , Cable heats up to 350°C at end of s/c: 30kA/0.5s - 21.5k1/1s , Item n° with silicone sheath: TAS150 , Weight (g): 530
TAP165
TAP210
