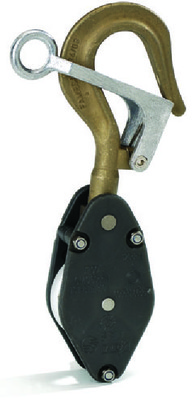

TP90 Insulating hook pulley for service ropes

USE :
Pulley used for :
- angle transmission of the service rope - lifting tools and materials,
- removing connections using a TM05 clamp.
It can be attached to a bracket, to the ring of a TE40, TE45, TE50 anchor bracket, to a TC155 rope tie, to a TC125 ring clamp.

SPECIFICATIONS :
Hook pulley with safety latch equipped with a manoeuvring ring (for hook pole).
Hook opening: 20 mm
Deep groove diameter 45mm
Cable Ø 10 mm max.
WLL (daN) 150
WLL one rope strand 60 daN
WLL total at hook	120 daN

ADVANTAGES :
• Very light pulley for simple manual work.
• Insulating pulley due to flanges and sheave made of insulating materials
