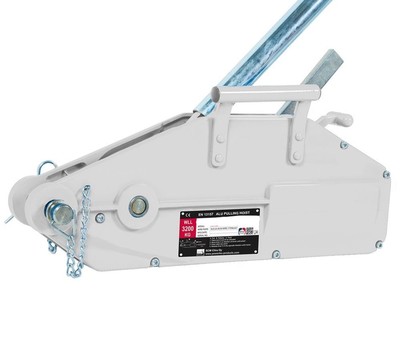

T420 Aluminium cable winch

STANDARD(S) : Machinery Directive 2006/42/EC Complies with EN 13157

USE :
Passing cable winch that works in all positions (horizontal, vertical) and can be used for lifting, pulling and lashing.
The winch is supplied with 20m of cable and hook.

SPECIFICATIONS :
Winch with compact and lightweight cast aluminium body.
100% of the winches are tested to 1.25 x CMU.
Winch equipped with a carrying handle.
Rubber mud flaps to limit debris entry.
Winch fitted with 20m of 6x19 IWRC 1770 N/mm² cable.
Safety factor of 5 on cables.
Hook with safety latch.
Winch equipped with RFID chip.
Only accessible spare parts are available (shaft, lever, pins, ...)

ADVANTAGES :
• Cable winch with no length constraints.
• The rope always stays in the grip during operation, which provides an anti-disconnect safety feature.
• Lever equipped with a safety pin to prevent overloading.

T42016 = Aluminium cable winch WLL 1.6T , Max force on lever: 41 daN , Cable Ø (mm): 11 , Lever L1/L2: 0.7 / 1.2 m , Dimensions (mm): 545 x 284 x 97 , Weight (kg): 12
T42032 = Aluminium cable winch WLL 3.2 T , Max force on lever: 45 daN , Cable Ø (mm): 16 , Lever L1/L2: 0.7 / 1.2 m , Dimensions (mm): 660 x 335 x 116 , Weight (kg): 23
T42054 = Aluminium cable winch WLL 5.4 T , Max force on lever: 85 daN , Cable Ø (mm): 20 , Lever L1/L2: 0.7 / 1.2 m , Dimensions (mm): 940 x 440 x 170 , Weight (kg): 61
