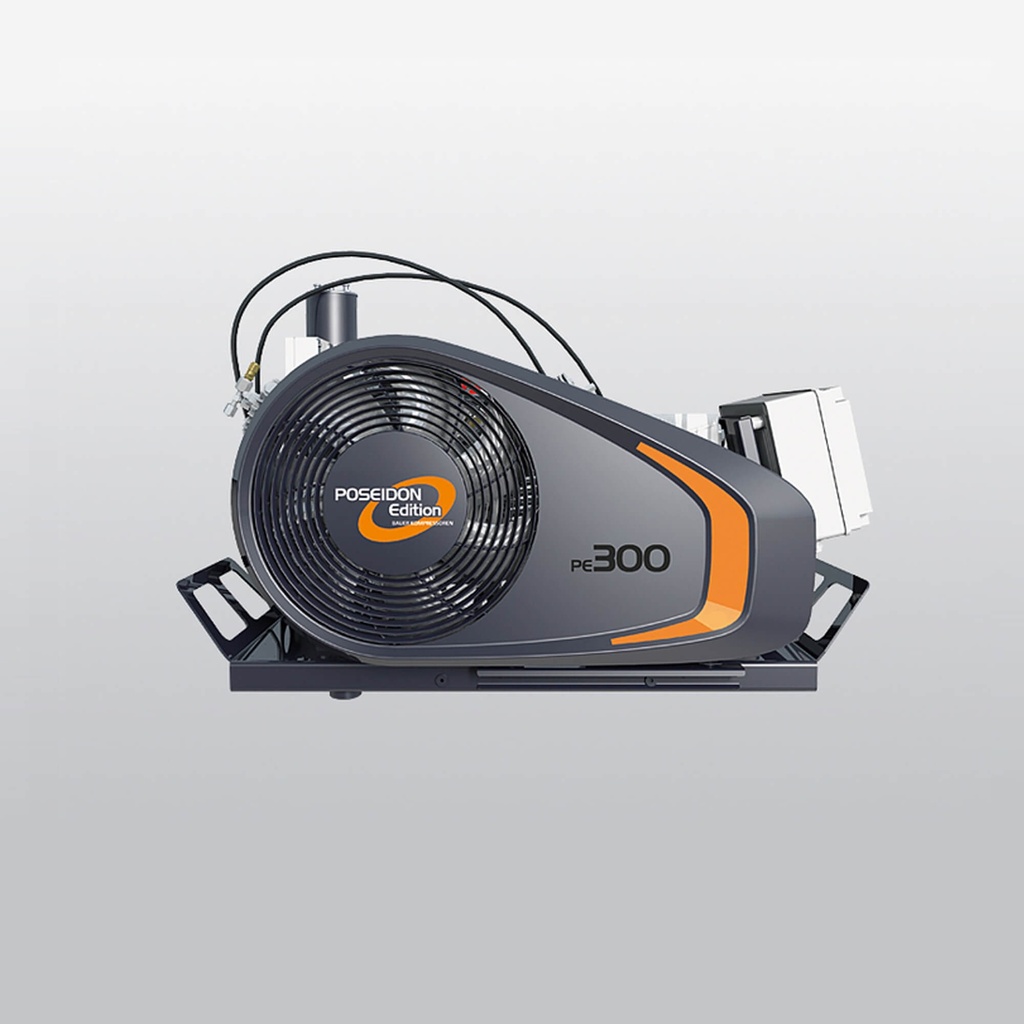

PE-TE/PE-TB Bauer High-pressure compressor, up to 330 bar, 200 - 300 l/min.

The transportable compressor units with optimised equipment for use in vehicles and on ships.
Uncompromising on quality: With a robust compressor block and piston rings made from wear-resistant special plastic.
Durable and robust: Thanks to oil cooling in the final compressor stage. For low wear and long service life.
Ideal for use at sea: Intercoolers and aftercoolers made from rust-free stainless steel. For high corrosion resistance.
Reliable lubrication: Thanks to low-pressure oil pump with oil filter. For effective lubrication and long oil change intervals.
POSEIDON EDITION units combine core components from BAUER KOMPRESSOREN in uncompromising quality whose ability to perform is beyond doubt with equipment that has been optimised for its intended purpose. The familiar durability, high safety and clean air quality conforming to international norms and standards naturally also comes as part of the package.

The PE-TE/PE-TB breathing air compressor series strikes a particularly good balance between price and free air delivery. Their integrated oil pump supports angles of inclination of up to 15 degrees, making this series of units particularly suitable for use on ships or for installation in vehicles.

Thanks to their compact dimensions, the units are very easy to transport and will fit into the boot space of many cars.

The mobile compressors of the POSEIDON EDITION are available as electrical (PE-TE) and gasoline (PE-TB) versions.

Technical specifications
PE-TE/PE-TB compressor series, up to 330 bar, 200 – 300 l/min, high-pressure compressors for compressing air and breathing air

Type designation / Charging rate ¹ l/min / Drive Motor / Filter system / Net weight / Dimensions cm L × W × H
PE200-TB / 200 / Three-phase motor, 400 V, 50 Hz ² - 4 kW / P 21 / 120kg / 110 × 50 × 57
PE250-TB / 250 / Three-phase motor, 400 V, 50 Hz ² - 5.5 kW / P 21 / 130kg / 110 × 50 × 57
PE300-TB / 300 / Three-phase motor, 400 V, 50 Hz ² - 7.5 kW / P 21 / 140kg / 110 × 50 × 57

PE 200-TE / 200 / Petrol engine - 5.9/6.6 ³ kW / P 21 / 47 kg / 125 × 58.5 × 57
PE 250-TE / 250 / Petrol engine - 6.6 kW / P 31 / 47 kg / 125 × 58.5 × 57
PE 300-TE / 300 / Petrol engine - 8.7 kW / P 31 / 47 kg / 125 × 58.5 × 57

¹ Measured with cylinder filling from 0 to 200 bar, ±5 %
² Other voltages/frequencies available at additional cost
³ 6.6 kW motor in combination with option B-DRAIN condensate automatics and final pressure shut-off.

BAUER GROUP

Founded in 1946, the BAUER GROUP has grown to be a prominent, active corporate group known for its reliable top-of-the-range compressors. Today, the BAUER GROUP is represented world-wide by 22 subsidiaries, over 350 accredited sales partners, and over 600 service stations. Being a Global Player in the high pressure- and screw- compressor market, our group owns a market share of more than 70% in breathing air applications.
