P74 ROLLCLIP A Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Description
Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency

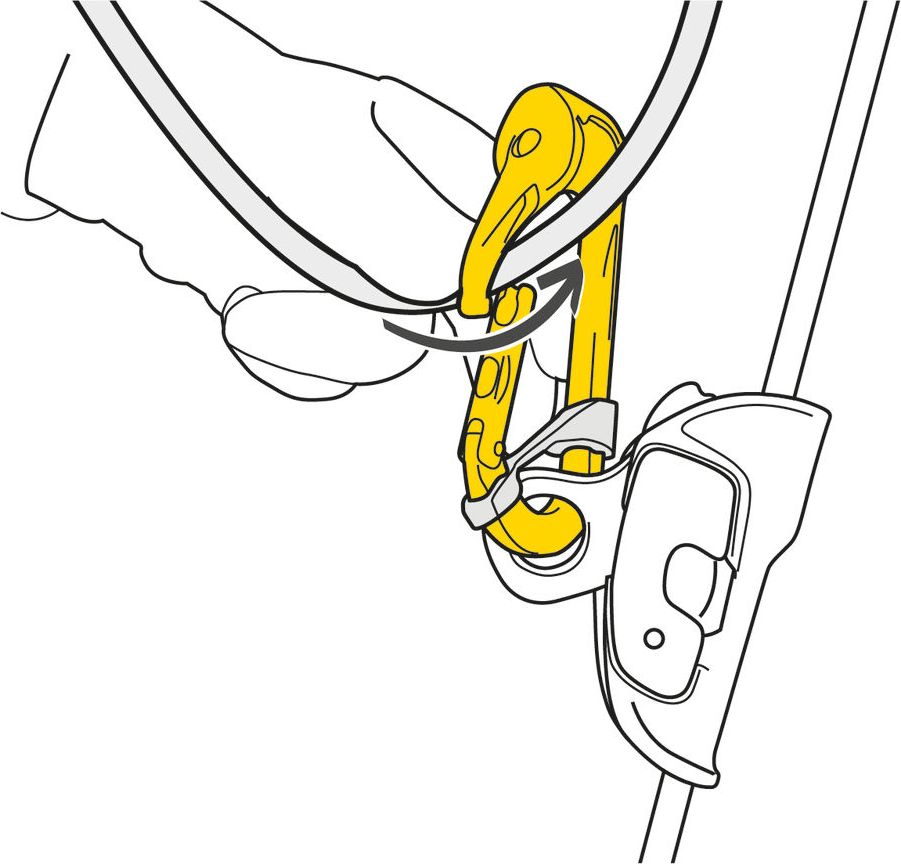

- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping

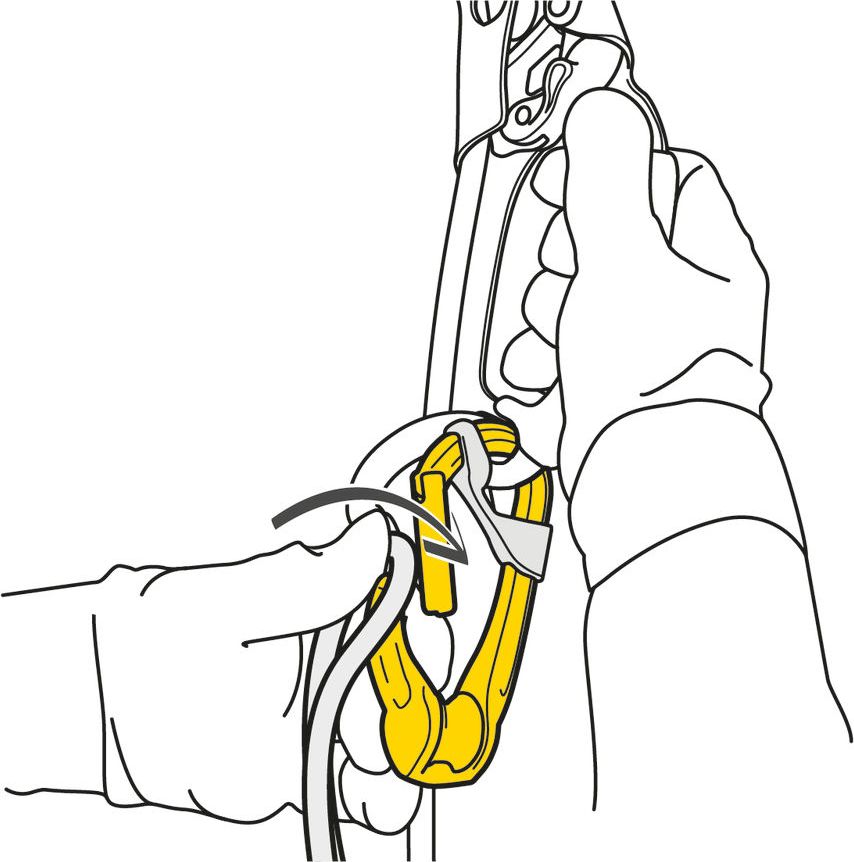

- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion

Available in versions with or without TRIACT-LOCK locking system

Specifications
Material(s): aluminum
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave diameter: 18 mm
Maximum working load: 2 x 2 = 4 kN
Efficiency: 85 %
Major axis strength: 20 kN
Minor axis strength: 8 kN
Open gate strength: 7 kN

References	P74 TL
Locking system TRIACT-LOCK
Weight	115 g
Certification(s)	CE EN 362, EN 12275, EN 12278, UKCA, EAC
Gate opening	22 mm

References	P74
Locking system	Non-locking
Weight	105 g
Certification(s)	CE EN 12275, EN 12278, UKCA, EAC
Gate opening	25 mm
