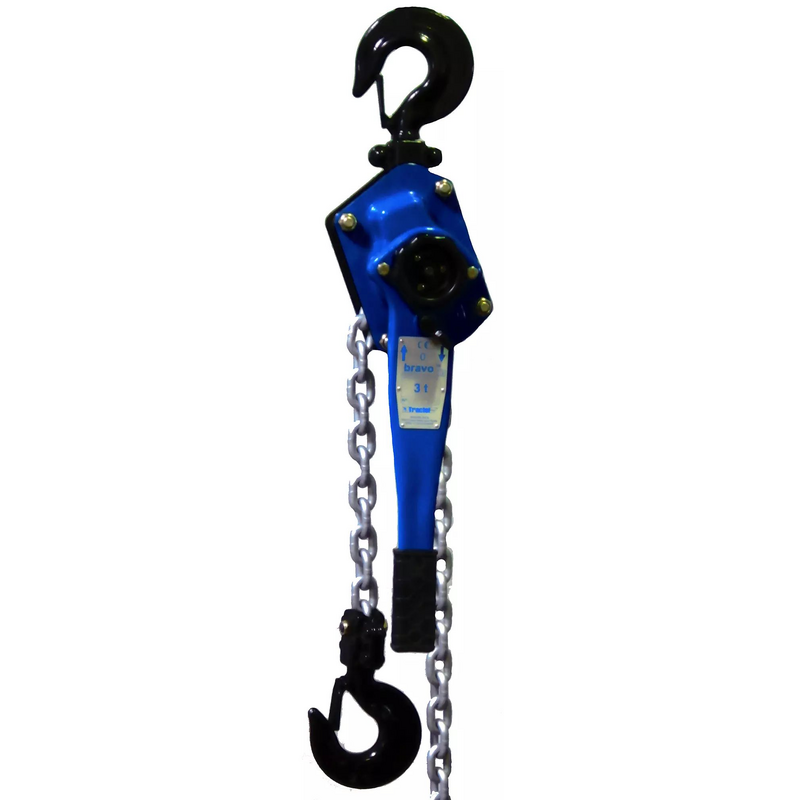

P12 Manual lever chain hoist double click system

USE :
This hoist is particularly suitable for lifting, handling, pulling (hauling) and mechanical tensioning
Its double click system ensures an optimal level of safety.
It is a high powered manual hoist suitable for all applications

SPECIFICATIONS :
Rubber handle.
Hook free rotation 360°.
Anti- corrosion chain protection.
The hoist disengage the chain when iddle (without load).
6 ton hoists equipped with a shell block sheave lifting hook.

ADVANTAGES :
• Compact and powerful hoist.
• Robust alloy steel construction.
• Freewheel system under no load for quickly approaching the hook to the load.
• Automatic closing of the brake when under load.
• Double click system to secure the load.

TABLE LEGEND : Other capacities on request.

Vatiant A = P12A = Chain lever hoist 1.5 m WLL 750 kg , Number of strands: 1 , Chain dimensions (mm): 6 x 18, Weight (kg): 7
Vatiant B = P12A3M = Chain lever hoist 3 m WLL 750 kg , Number of strands: 1 , Chain dimensions (mm): 6 x 18, Weight (kg): 8.2
Vatiant C = P12B = Chain lever hoist 1.5 m WLL 1500 kg , Number of strands: - , Chain dimensions (mm): 7 x 21, Weight (kg): 11.5
Vatiant D = P12B3M = Chain lever hoist WLL 3 m 1500 kg , Number of strands: - , Chain dimensions (mm): 7 x 21, Weight (kg): 13
Vatiant E = P12C = Chain lever hoist 1.5 m WLL 3000 kg , Number of strands: - , Chain dimensions (mm): 10 x 30, Weight (kg): 21.4
Vatiant F = P12C3M = Chain lever hoist 3 m WLL 3000 kg , Number of strands: - , Chain dimensions (mm): 10 x 30, Weight (kg): 24.7
Vatiant G = P12D = Chain lever hoist 1.5 m WLL 6000 kg , Number of strands: 2 , Chain dimensions (mm): 10 x 30, Weight (kg): 30.2
Vatiant H = P12D6M = Chain lever hoist 6 m WLL 6000 kg , Number of strands: 2 , Chain dimensions (mm): 10 x 30, Weight (kg): 50.2
