KITPCH1000TOP Capstan winch kit
USE :
This hoist can be used for both lifting and pulling operations.
This hoist is suitable for all trades.
Applications : Lifting, pulling, unwinding, moving, ...
SPECIFICATIONS :
50cc 4-stroke petrol engine for lead-free petrol.
Starter by launcher.
Centrifugal clutch by engine speed acceleration.
Power: 1.6 kW
WLL Lifting: 250 kg
WLL Pulling: 775 kg
Rope: Ø 12 mm

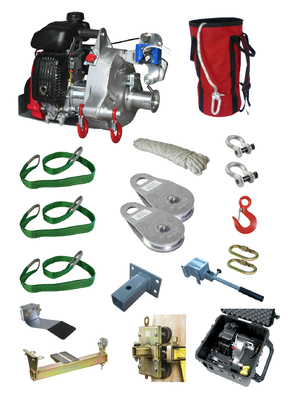

Composition :
- 1 PCH1000 winch for pulling and lifting
- 1 anchor on posts (wood or concrete)
- 1 anchor on towing ball Ø50mm
- 1 horizontal pulling support - 1 vertical pulling support
- 1 polyester rope Ø12mm L100m looped
- 1 rope bag - 2 polyester slings
- 2 stainless steel pulleys - 2 carabiners
- 1 Pelican transport box (59x56x54cm IP67)
ADVANTAGES :
• Capstan winch with rope for pulling without length limit, approved for lifting up to 250 kg.
• Pulling winch with a capacity of 775 daN.
• Rope guide with lock to ensure load retention.
• Wide selection of accessories for working in all situations.
