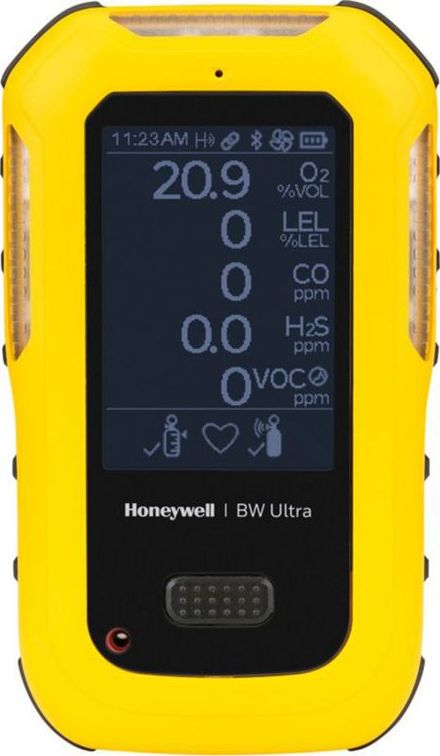

BW Ultra Mutli-Gas Detector (Pumped)
At Honeywell, we always put your safety where it should be – first.
With Honeywell BW™ Ultra, our new portable five-gas detector, you will be able to do the same for your workers. Designed specifically for sampling and monitoring confined spaces, before and after entry, Honeywell BW™ Ultra has enhanced sensor technology, visibility on gas readings, comfort, and connectivity. This makes it the most reliable and user-friendly way to prevent a safety incident.
Extra Gas Detection. Extraordinary.
The Honeywell BW™ Ultra complies with all safety regulations in place by detecting your required gases. Furthermore, it goes the extra mile by offering you the option to choose a fifth sensor from a list of gases – for added protection at work.
The Honeywell BW™ Ultra is the first gas detector on the market to feature the 1‑Series sensor, with fast response, reliable performance and long life, even in extreme working conditions. That means high accuracy and lower costs.
FEATURES & BENEFITS
Ultra Easy
• Tamper-proof operation with one button operation
• Intuitive LCD icons for quick decision making
• Easy service and maintenance
Ultra Visibility
• Intuitive large dot matrix display giving clear readings
• Smart Gas layout for clear sensor reading
• Hole Watch Mode for quick decision making
• IntelliFlash™ and also Reverse IntelliFlash™ for clear compliance
Ultra Rugged
• Honeycomb-designed housing for extra ruggedness
• Protection designed in the right place
• Scratch-resistant display protector
Ultra Connected
• Honeywell Connected Worker compatible
• Honeywell TouchConnect™ Technology for activating a feature
• Honeywell SafetySuite for unit configuration and reporting
Ultra Comfortable
• Ergonomically designed for easy use
• Light yet rugged design
• Fits in the hand for easy sampling
Ultra Quick
• Quick responding sensor technology
• Quick decision making because large display
• Quick bump & calibration with IntelliDoX system
Honeywell BW™ Ultra Technical Specifications
SIZE 5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm
WEIGHT 14.5 oz. / 411 g (with clip)
OPERATING TEMPERATURE -4 to +131° F / -20 to +50° C
HUMIDITY 5 - 95% RH (non-condensing) continuous
INGRESS PROTECTION IP66/68
ALARMS AND TYPE Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)
SELF-TEST Activated detectors automatically perform one internal diagnostic
test every 24 hours (sensors, battery, and circuitry).
TYPICAL BATTERY LIFE 18 hours (14 hours with PID or IR sensor) @ -4° F / -20° C
PUMP DRAW Sample from up to 75 ft. / 22.9 m
CONNECTED WORKER • Bluetooth™ Low Energy (BLE) – Ability to connect
to Honeywell’s Safety Communicator App
• Honeywell TouchConnect™ – Easy ability to enter
Bump or Calibration mode or change Set-Points
EVENT LOGGING 30 alarm events and 10 bump events
DATA LOGGING 45 days based on 8 hour shifts every 15 seconds logging
USER OPTIONS • Adjust STEL period (5-15 minutes in 1 minute intervals)
• Calibration span levels
• Calibration interval
• Bump test interval
• Select combustible gases measurement: 0-100% LEL
(Lower Explosive Limit) or Methane gas 0-5.0% v/v
• LEL and PID correction factors
• Calibration due date (1 to 365 days, or set to zero for off)
• Individual sensor enable/disable
• Latching alarms
• Stealth mode
• Languages: English, French, German, Portuguese,
Spanish, Simplified Chinese and Russian
CERTIFICATIONS AND APPROVALS:
Class I, Div 1, Group A, B, C, D
Class I, Zone 0, Group IIC
ATEX: II 1G Ex ia IIC T4 Ga
IECEx: Ex ia IIC T4 Ga
X: European Conformity
SENSOR SPECIFICATIONS
GASES / STANDARD / MEASURING / RANGE RESOLUTION
OXYGEN (O2) 0-25% vol. 0.1% vol.
COMBUSTIBLE GASES (LEL) 0-100% LEL 1% LEL
COMBUSTIBLE GASES (IR)* 0-5.00% vol. 0.01% vol.
HYDROGEN SULFIDE (H2S) 0-100 ppm 1 ppm / 0.1 ppm
CARBON MONOXIDE (CO) 0-2,000 ppm 1 ppm
CARBON MONOXIDE (CO-H) (LOW H2) 0-1,000 ppm 1 ppm
SULFUR DIOXIDE (SO2) 0-100 ppm 0.1 ppm
HYDROGEN (H2) 0-2,000 ppm 5 ppm
CARBON DIOXIDE (CO2) 0-50,000 ppm 100 ppm
AMMONIA (NH3) 0-100 ppm 1 ppm
VOLATILE ORGANIC COMPOUNDS (VOC) ** 0-1,000 ppm 1 ppm
CHLORINE (CL2) 0-20 ppm 0.1 ppm
NITROGEN DIOXIDE (NO2) 0-50 ppm 0.1 ppm
HYDROGEN CYANIDE (HCN) 0-100 ppm 0.1 ppm
NITROGEN MONOXIDE (NO) 0-200 ppm 1 ppm
* Caution – the LEL IR combustible gas sensor option used in Honeywell BW™Ultra cannot detect certain combustible gases including hydrogen and acetylene.
Standard Package Contents
• Detector complete with specified sensor(s), stainless steel alligator clip and concussion-proof housing
• Rechargeable battery
• Wall outlet charging adaptor
• calibration hose
• sampling hose with particulate filter
• Reversible screwdriver
• spare filters, ports and connectors
• Manual printed and usb stick
HONEYWELL
Accidental gas leaks pose a considerable threat to properties, environment and human life. Therefore, Honeywell Analytics and BW™ Technologies manufacture and produce a full and comprehensive range of portable & fixed gas detectors, from simple alarm-only units to advanced, fully configurable and serviceable instruments. Ideal for confined spaces, spot leak testing and mobile use such as underground utility vaults, boiler rooms, post-fire sites, sewers, industrial plants, industrial hygiene, first responder crews and remote fleets.
