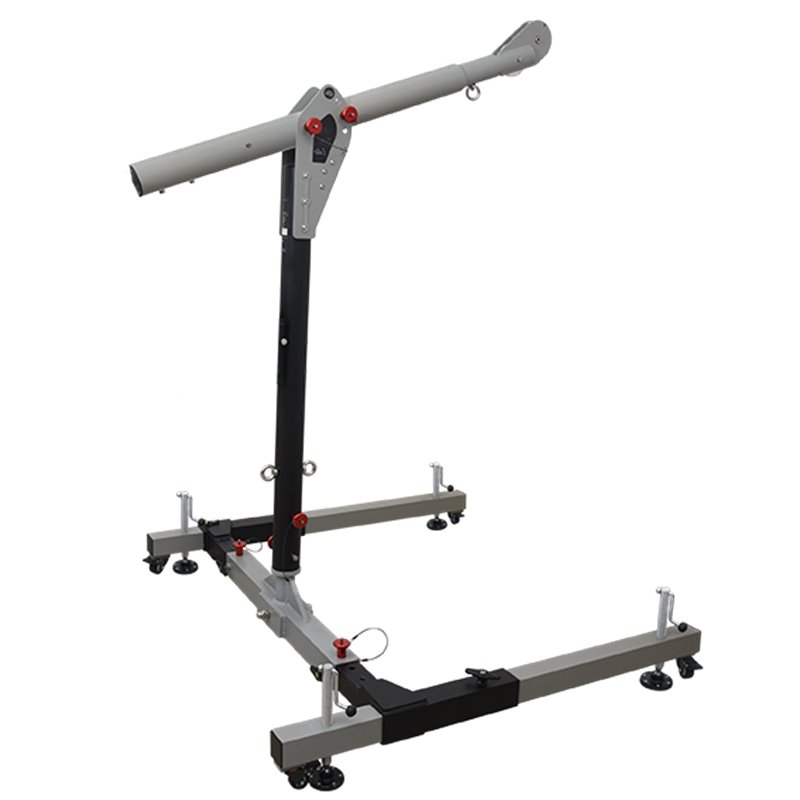

FA60105 07 EasySafeWay 1. Mobile H-shaped base davit system

EasySafeWay 1 - Mobile H-shaped base davit system composed of FA 60 105 04 (column height 915 mm), FA 60 105 05 and FA 60 105 06.

Mobile H-shaped base davit system for access in confined spaces with a large opening.
Composed of FA 60 105 04 (davit column, height 915 mm), FA 60 105 05 (davit arm) and FA 60 105 06 (H-base).
H-base equipped with height adjustable feet and spirit levels for correct levelling of the davit system.
H-base: min. opening Ø 1100 mm / max. opening Ø 1510 mm.
Davit system has a 360° rotation, even when loaded.

Davit arm is adjustable at 3 defined heights: 1.66 m / 2.0 m / 2.28 m).
Material: Aluminium.
Weight: 58.35 kg.
Maximum load capacity: 500 kg.

Compliance: EN 795:2012 Type B.
Anchorage points resistance > 12 kN.
