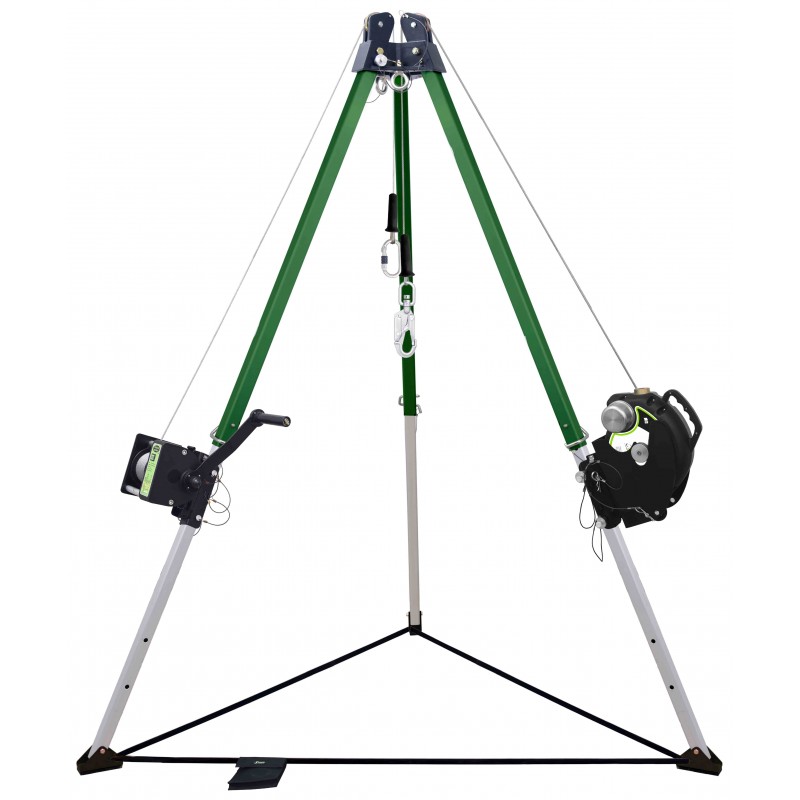

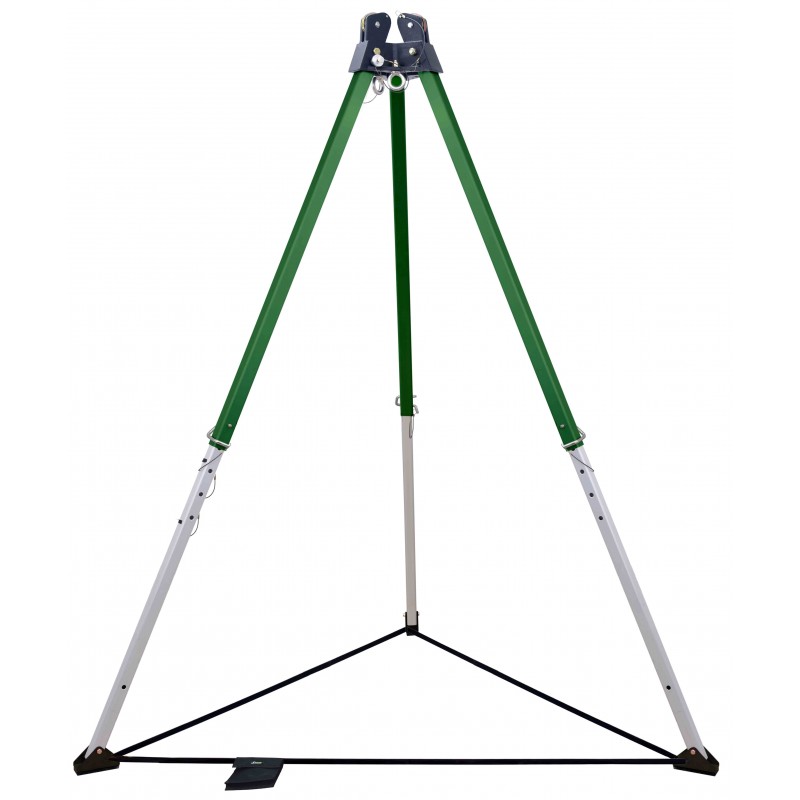

FA6010100 ATEX Tripod 7 ft. with double head mounted pulleys

7 ft. Tripod, with double head-mounted pulley

For access in confined spaces
Adjustable height: from 1.15 m to 2.15 m
Wheelbase: from 1.08 m to 1.62 m
Weight: 14.6 kg
Maximum Load Capacity: 500 kg under head / 250 kg on leg

Compliance: EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808

- With two double head-mounted pulleys at the head of the Tripod for passing the cable of the winch and the retractable fall arrester with integrated rescue winch.
- Having two auxiliary eye bolts as attachment points.
- Aluminum alloy cast head, legs in aluminium.
- Steel support-shoes provided with rubber sole to increase friction and impart more stability.
- Strength of anchorage point > 12 kN

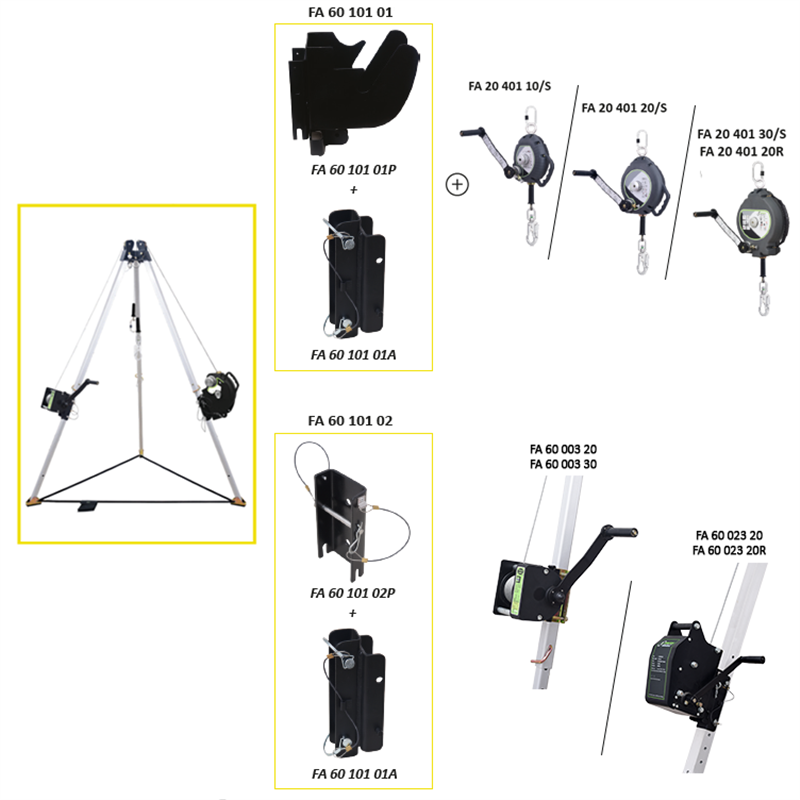

- To be used in combination with the set of universal adaptation plates FA6010102 for attaching our winch FA6000320 / FA6000330 / FA6002320 / FA6002320R.

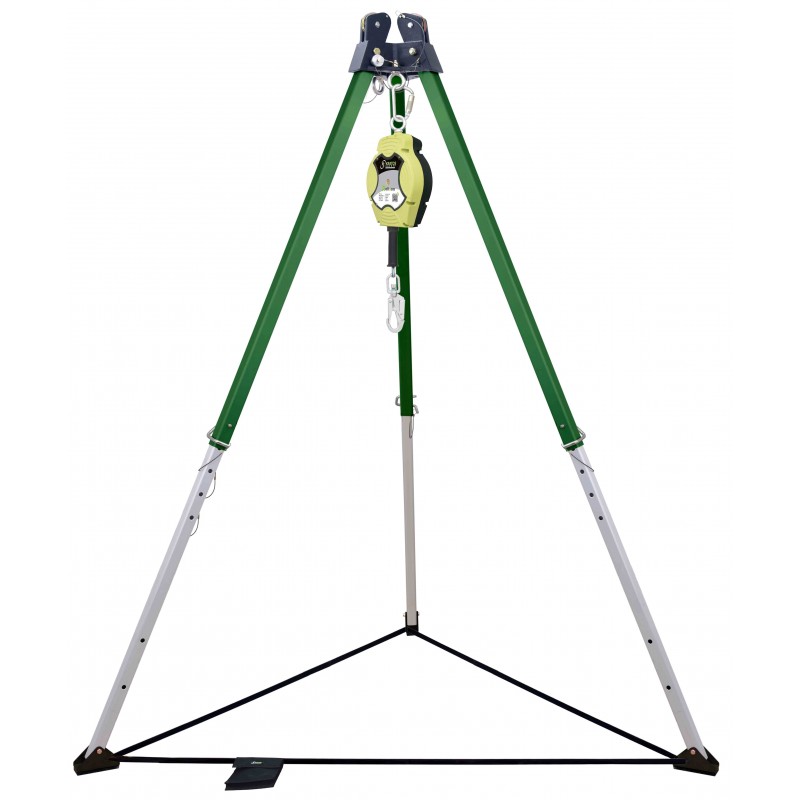

- To be used in combination with the set of universal adaptation plates FA6010101 for attaching our retractable fall arresters with integrated rescue winch FA2040110/S, FA2040120/R/S, FA2040130/S.
- Every Tripod is provided with Tripod Bag

KRATOS SAFETY

KRATOS SAFETY is a provider focused on innovation, value creation, quality overtime, expertise in design and manufacturing. Having an integrated industrial base of raw material from base to the finished product, a laboratory certified, designers and technicians, the KRATOS SAFETY range is made to satisfy the requirements of European standards and the expectations of comfort and ergonomic of the users to their workstations.
