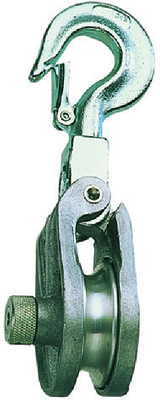

Hook pulley for service ropes

USE : Mainly used as a return pulley for ropes up to maximum diameter of 16 mm (hoist, service or operating ropes).

SPECIFICATIONS :
Hook pulley with safety latch.
Steel hook with anti-corrosion treatment.

ADVANTAGES :
• Very light aluminium alloy pulley with opening flange.
• Sheave mounted on armoured ball bearing and greased for life.

802 = Version: Anchoring: hook , Deep groove diameter: 130 mm , Ø rop: 16 mm max. , WLL (daN): 500 , WLL one rope strand: 250 daN , WLL total at hook: 500 daN
842 = Version: Anchoring: hook with manoeuvring ring , Deep groove diameter: 60 mm , Ø rop: 16 mm max. , WLL (daN): 250 , WLL one rope strand: 125 daN , WLL total at hook: 500 daN
