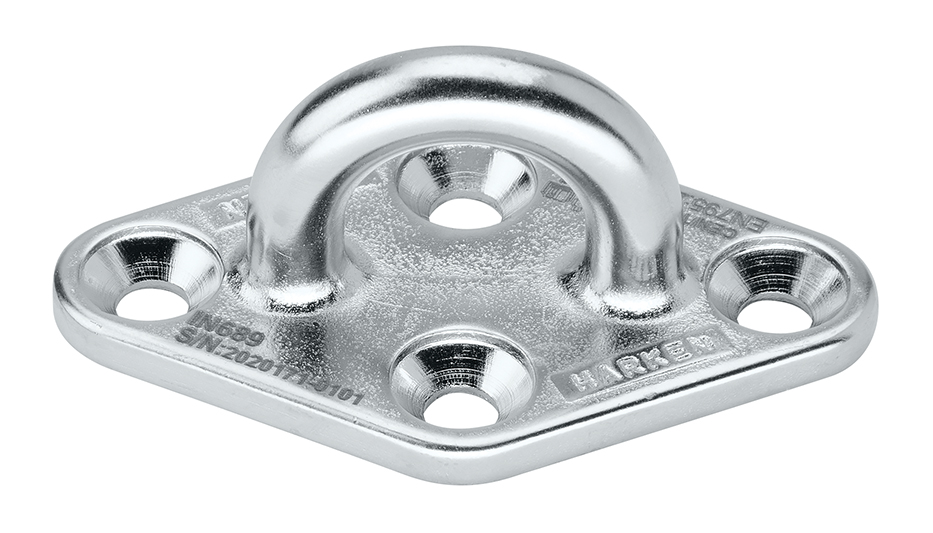

IN689 98 mm Stainless Steel Diamond Standard Padeye-EN795

The IN689 316 stainless steel diamond anchorage point is designed to be permanently installed on a structure so that an anchor device, or personal protective equipment can be attached to it, facilitating safe working at height. It is large enough to allow free movement of attachments and will accommodate carabiners. Tested to EN795:2012 CLASS A. The padeye is appropriate for single-person use for both fall arrest and rope access with an energy absorber to EN 355.

A (mm)	98 mm
A (in)	3 7/8 in
B (mm)	59 mm
B (in)	2 5/16 in
C (mm)	73 mm
C (in)	2 7/8 in
D (mm)	35 mm
D (in)	1 3/8 in
E (mm)	40 mm
E (in)	1 9/16 in
F (mm)	22 mm
F (in)	7/8 in
G (mm)	27 mm
G (in)	1 1/16 in
Weight (g)	213 g
Weight (oz)	7.5 oz
Maximum rated load (kN)	15.75 kN
Breaking load (kN)	63 kN
Fasteners (mm)	8 FH mm
Fasteners (in)	5/16 FH in
Maximum number of users	3
