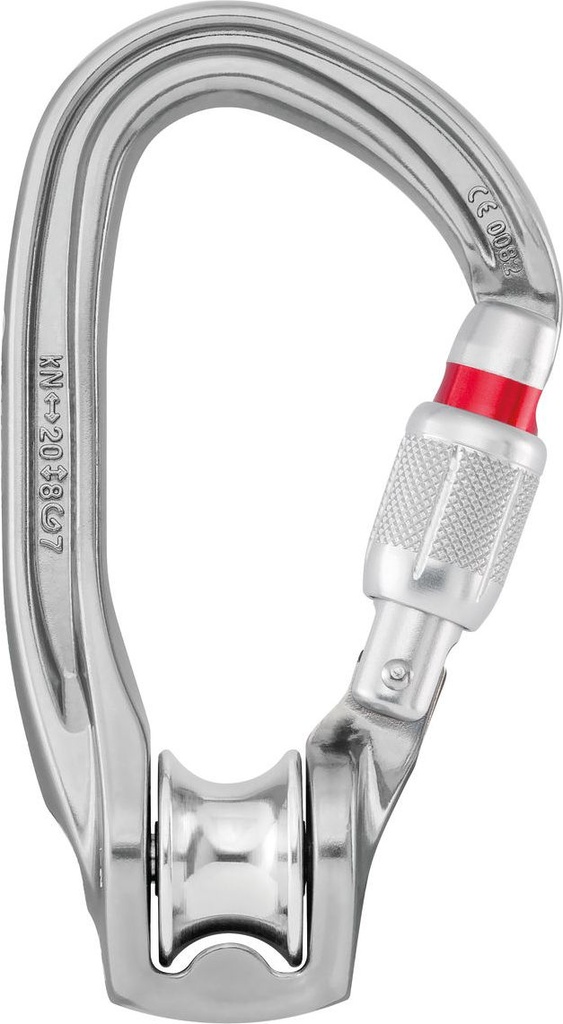

ROLLCLIP Z Pulley-carabiner that facilitates installation on anchors and devices

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

Description
Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion

Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications
Material(s): aluminum
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave diameter: 18 mm
Maximum working load: 2 x 2 = 4 kN
Efficiency: 85 %
Certification(s): CE EN 362, EN 12278, UKCA, EAC
Major axis strength: 20 kN
Minor axis strength: 8 kN
Open gate strength: 7 kN

References	P75 TL
Locking system	TRIACT-LOCK
Weight	110 g
Gate opening	20 mm

References	P75 SL
Locking system	SCREW-LOCK
Weight	105 g
Gate opening	21 mm
