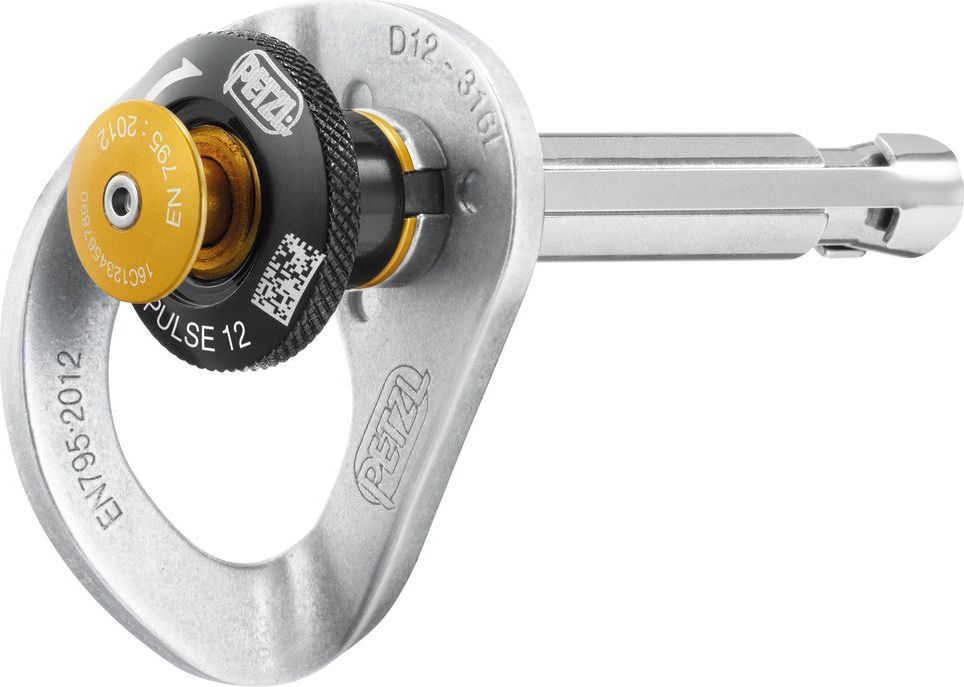

P37S 12 COEUR PULSE Removable 12 mm anchor with locking function

The COEUR PULSE is a removable high-quality stainless steel anchor that can be installed and removed for reuse very simply and rapidly, without tools. The locking function limits the risk of involuntary removal.

Description
Easy to use:
- simple, rapid installation and removal, without tools, allowing it to be reused (1)
- locking function limits the risk of involuntary removal

Easy clipping:
- the wide, ergonomic connection hole facilitates carabiner clipping
- the width of the hole allows installation of two carabiners at the same time
Prevents wear of carabiners thanks to the thickness of the hanger and the rounded edges of the connection hole
Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

(1) For optimal use of the anchor, the hole must be perfectly cylindrical. To this end, opt for a drill bit with three or four cutting edges.

Specifications
Material(s): 316L stainless steel
Certification(s): CE EN 795 B

References P37S 12
Diameter 12 mm
Weight 140 g
Drilling depth 6,5 cm
Drilling diameter 12 mm
Shear strength in 50 MPa concrete 25 kN
Pull-out strength in concrete 50 MPa 20 kN
