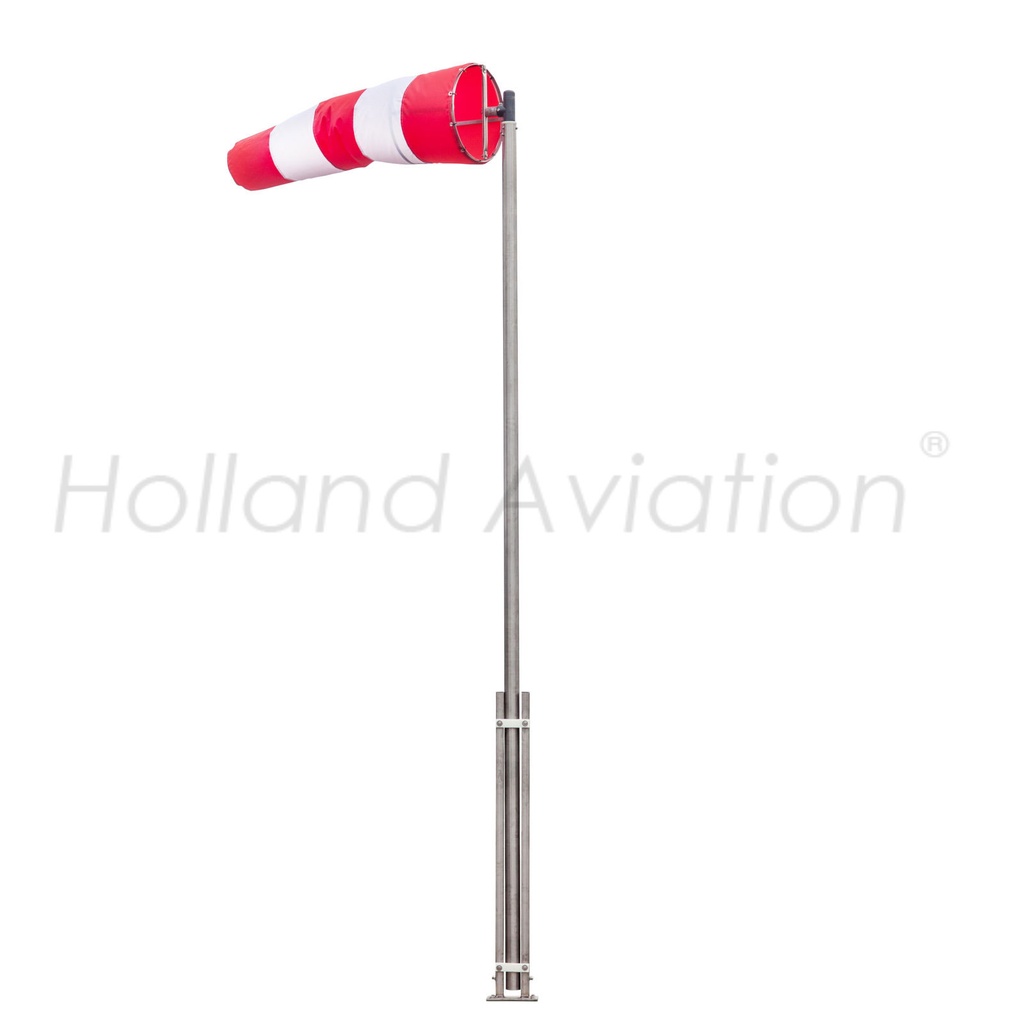

HA-120RG Windsock assembly, Rigid mast (4.8m)
Description
The HA-120 RG is a rigid wind direction and wind speed indication. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or slip-rings. Due to its unique design maintenance cost and power consumption are low. The tiltable mast structure enables easy replacement of the windsock.
MAST DIAMETER 120mm
MAST LENGHT Standard: 4800mm (or any other lenght on request, max. 5800mm)
MAST MATERIAL T50 Aluminium (brute or powder coated)
WINDSOCK Ø30cm up to and including Ø100cm, colour red/white (ICAO) or orange (FAA), double stitched with reinforced front hem and grommets (see other side for exact measurements)
WINDSOCK MATERIAL Polyester, PU coated, approx. 185 gr/m²
WINDSOCK FRAME MATERIAL Stainless steel AISI 316L
SWIVEL HEAD 2 heavy duty sealed stainless steel bearings
MAST SUPPORT AND FOUNDATION MATERIAL Galvanised steel
LIGHTING STYLES Unlighted, externally, internally, double lighted
POWER SUPPLY 90-240VAC or 6,6A
POWER CONSUMPTION
Internal Lighting: 12 Watt
External Lighting: 40 Watt
Double lighted: 52 Watt
Obstruction Light: 5 Watt
INGRESS PROTECTION IP65
AMBIENT TEMPERATURE -40°C to +60°C
COMPLIANCES ICAO Annex 14 Vol. I Aerodromes, ICAO Annex 14 Vol. II Heliports, FAA AC150/5345-27, UK CAA CAP 168 and CAP 437, EASA ADR, EASA CS-HPT-DSN
| Windsock assembly options | Unlighted or Internally Lighted or Internally Lighted 6.6A or Double Lighted or Externally Lighted or Solar Power Lighted |
| Боја | ORR Портокалова or RWR Црвена/Бела |
| Brand | Holland Aviation |
