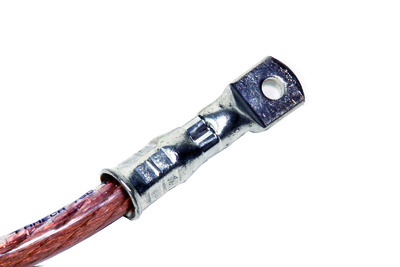

TSF connections, sheathing Silicone

STANDARD(S) : IEC61230

USE : Provide the copper connection between the line clamps and the earth clamps in portable earthing and short-circuiting devices.

SPECIFICATIONS :
Connection by crimped DIN cable lugs sealed by a 2nd crimping of the insulation;
TFK type : connection made with extra flexible PVC sheathed cable (ST11) for use from -25°C to +55°C.
TSF type : connection made with silicone sheathed cable for use from -40°C to + 70°C.

TABLE LEGEND : Other connections available on request.

TSF1616 = Cross-section: 16 mm² , Cable length (m): 16 , Stud hole diameters (mm): Ø 10
TSF350275 = Cross-section: 35 mm² , Cable length (m): 2.75 , Stud hole diameters (mm): Ø 10
